Antra™ AntFi 660 Solar Power Auto Darkening Lens Shade 4/5-9/9-13
Free Gift

Regular price $56.95USD

Auto Darkening Lens for Antra™ Helmets. May fit in other brand helmets, however it is at owner’s risk by doing so and warranty will be voided for lens/filters installed on other brand helmet shields. Please refer to the cross-reference chart, small modification may be required. One year warranty on all Antra™ auto darkening lens.


  • Full time UV protection minimum DIN13 by passive UV filter layer
  • Solar power cell design with replaceable batteries(CR2450, replace without taking lens off from helmet)
  • Fully automatic power ON/OFF.
  • Can be used for MIG/MAG, TIG, ARC welding, Plasma cutting, and grinding.

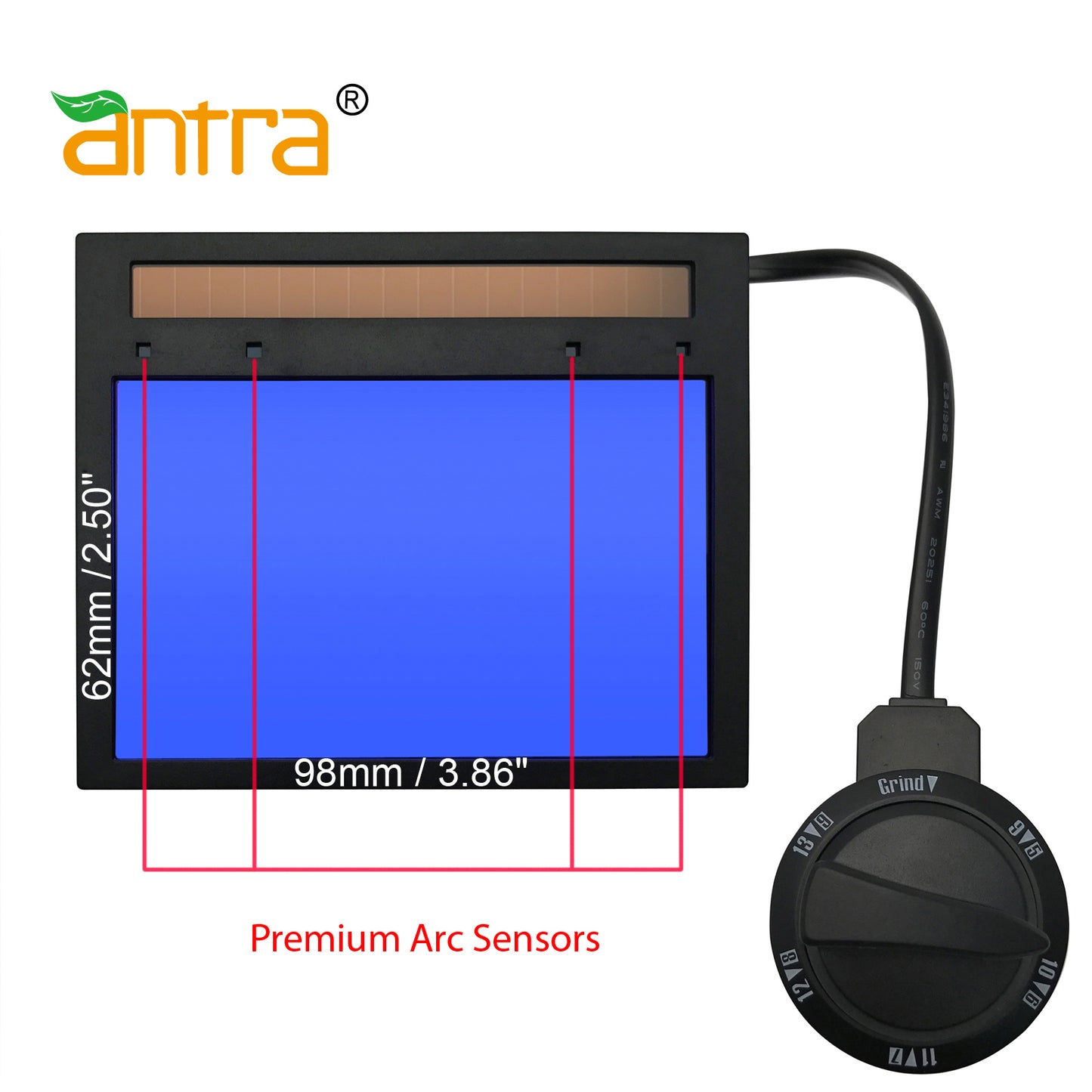

  • 4 Sensor design ensures higher sensitivity
  • Grinding feature on shade 4 and welding on shade 5-9/9-13
  • Knob to adjust the delay time and sensitivity
  • Cheater lens compatible
  • Battery indicator and testing
  • Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.


    • Viewing Area: 96mm x 63.5mm / 3.76"X2.50"

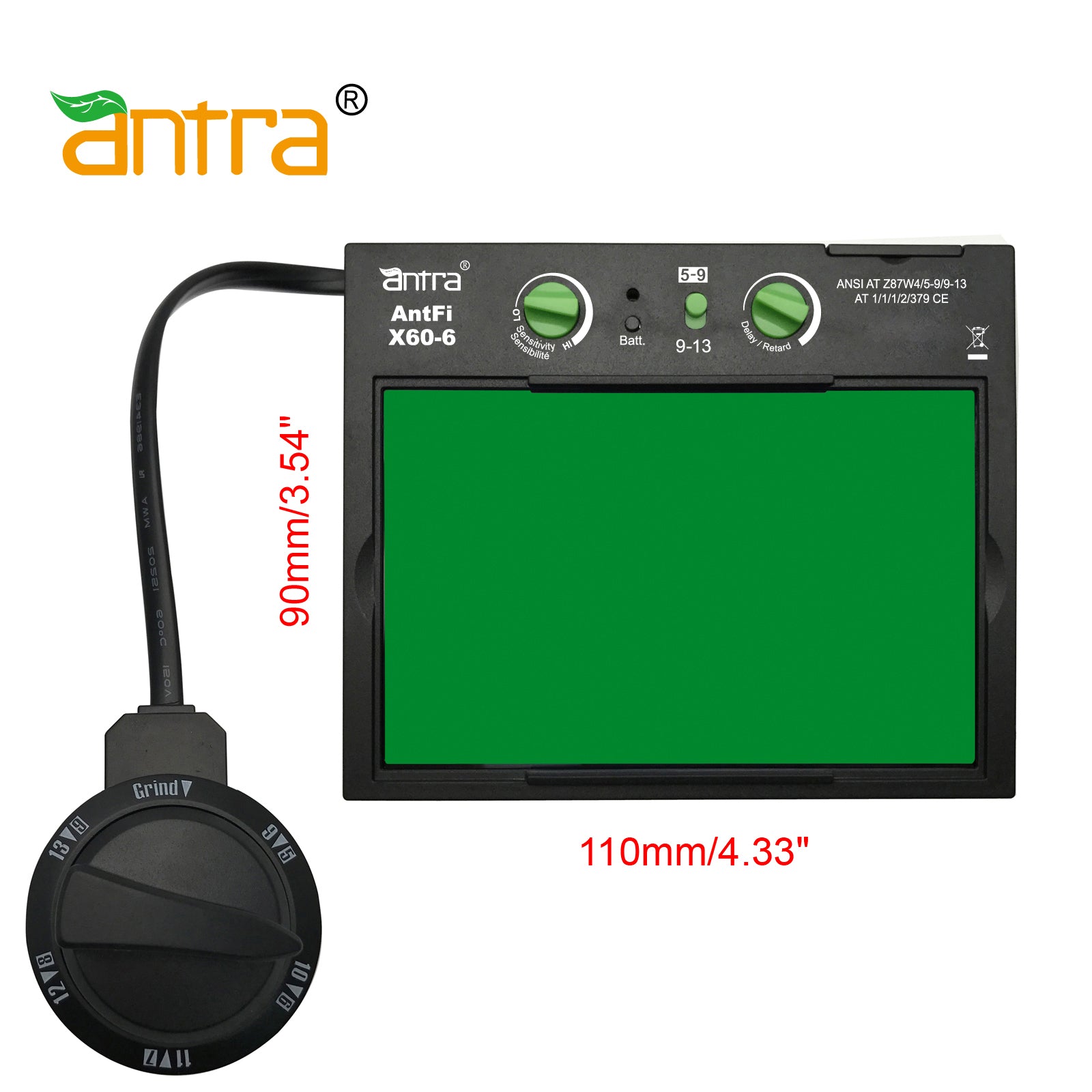

    • Cartridge Size: 110mm x 90mm x 9mm / 4.33" x 3.54" x 0.35"
    • Optical Class: 1/1/1/2
    • Reaction Time: 0.00004(1/25,000) Seconds
    • Dark to Light: 0.1-1 Seconds
    • Light State: Shade DIN 4
    • Dark State: Shade DIN 5-9/9-13
    • DC TIG Amperage Rating: >5 Amps
    • Battery: Solar Cell + 1X CR2450 (Battery compartment is located out side of the lens, close to Shade knob).  or Old model AH6-660 ( 2X CR1616,Located on the lens, Lens has to be popped off from the shield)
    • Operating Temperature: -10°C- 55°C (14°F-131°F)
    • Storage Temperature: -10°C- 55°C (14°F-131°F)
    • Meet Standards: ANSI Z87.1 / EN379 CE / CSA Z94.3
    • Warranty: 1 Year manufacturer warranty
