Antra

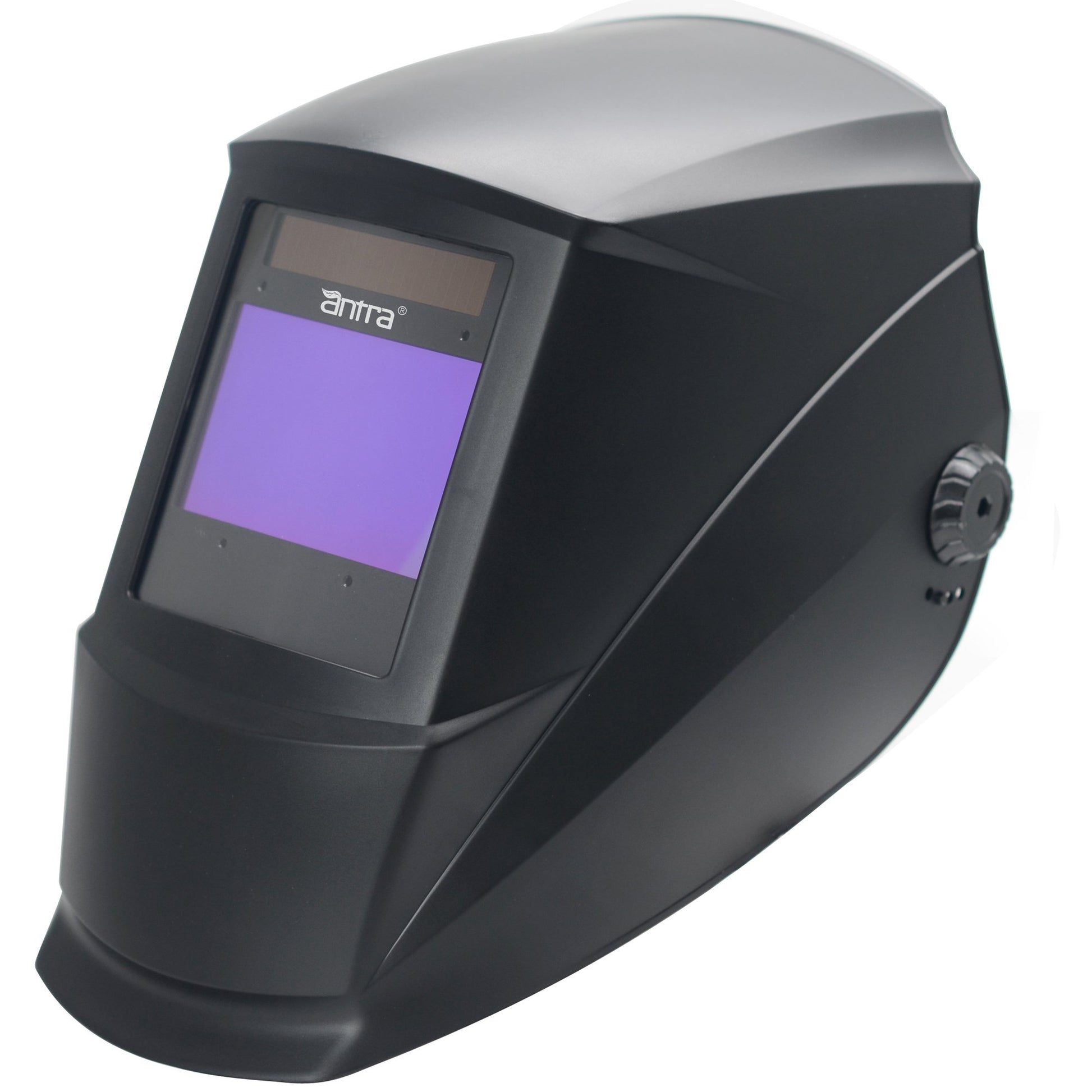

Antra™ AH7-X80-0000 Solar Power Auto Darkening Welding Helmet Shade 4/5-9/9-13

Antra™ AH7-X80-0000 Solar Power Auto Darkening Welding Helmet Shade 4/5-9/9-13

Regular price $75.99 USD
Regular price $139.99 USD Sale price $75.99 USD
Sale Sold out

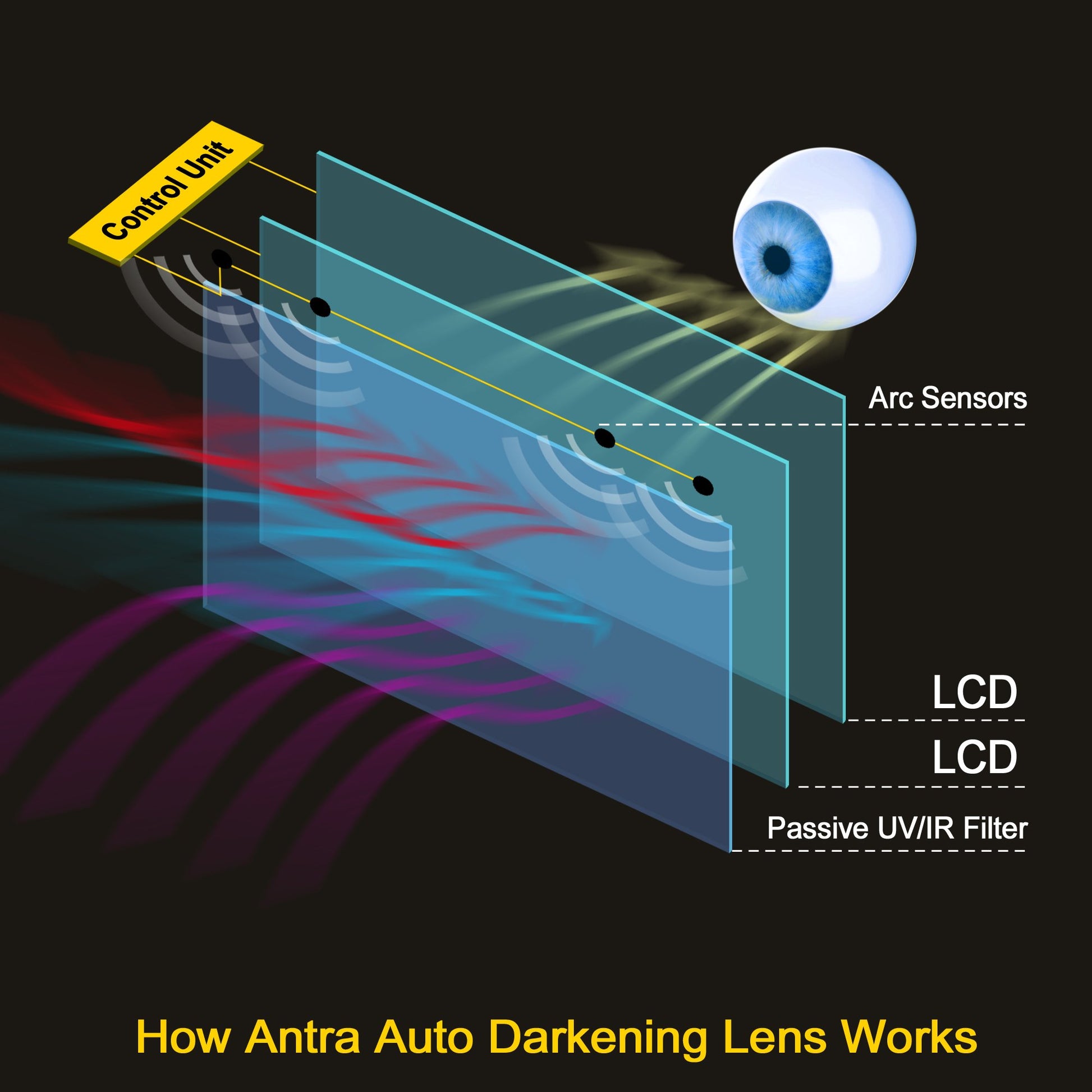

Antra™ AH7-X80 Series welding helmet is featured with the digital controlled 4 sensor auto darkening lens, which is extremely fast responsive to electric arc from TIG, MIG, MMA or Plasma applications. LCD Shade display eliminate guess work, the lens stays on the shade you see! This light weight welding helmet is so versatile that it can be used on grinding, cutting and welding applications. It is a perfect upgrade for goggles and fixed shade glass welding helmet, or regular control auto helmets at a fraction of cost.

Features:

  • UV/IR Permanent Protection by Passive Filter, UV Shade>=DIN13
  • Solar power cell design with replaceable batteries
  • Can be used for TIG, MIG/MAG, MMA(Stick), Plasma Cutting and Grinding.
  • Manual ON, Manual/Auto OFF.
  • Digital controlled sensitivity and delay setting with LCD display

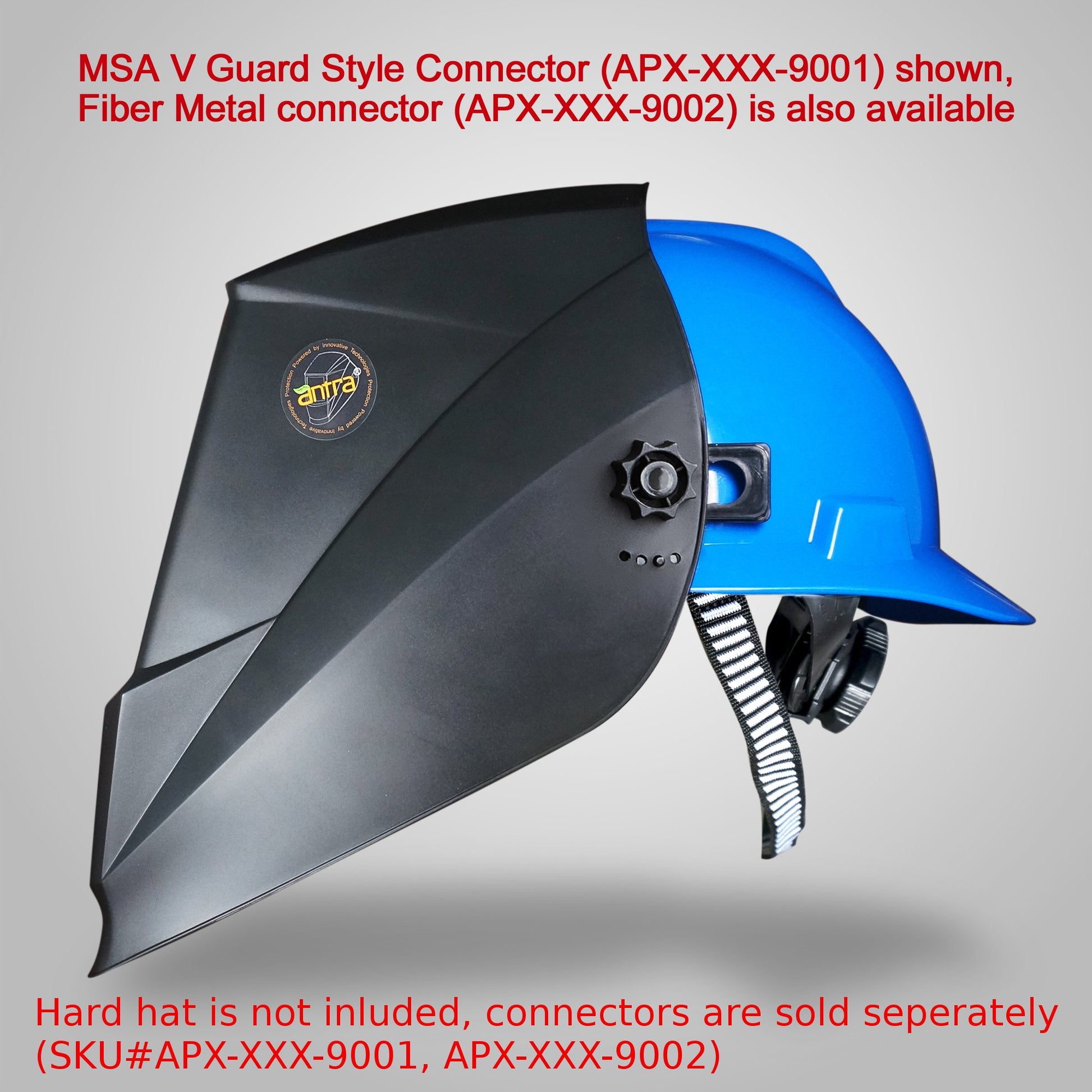

  • Hard hat adapter (Sold separately)
  • Low Battery indicator
  • Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
  • Super lightweight design, only 533g/19oz.


Specifications

  • Viewing Area: 98mm x 62mm/3.86" x 2.36"
  • Cartridge Size: 133mm x 114mm x 9mm/5.24" x 4.5" x 0.35"
  • Optical Class: 1/1/1/2
  • Reaction Time: 0.00004(1/25,000) Seconds
  • Dark to Light: Digital(1-9) 0.1-0.9 Seconds
  • Light State: Shade DIN 4
  • Dark State: Shade DIN 5-9/9-13
  • DC TIG Amperage Rating: >2 Amps
  • Battery Type: Solar Cell + 2X CR2032 (Replaceable)
  • Helmet Material: High Impact Polyamide Nylon
  • Operating Temperature: -10°C55°C (14°F-131°F)
  • Storage Temperature: -10°C55°C (14°F-131°F)
  • Meet Standards: ANSI Z87.1 / EN379 CE / CSA Z94.3

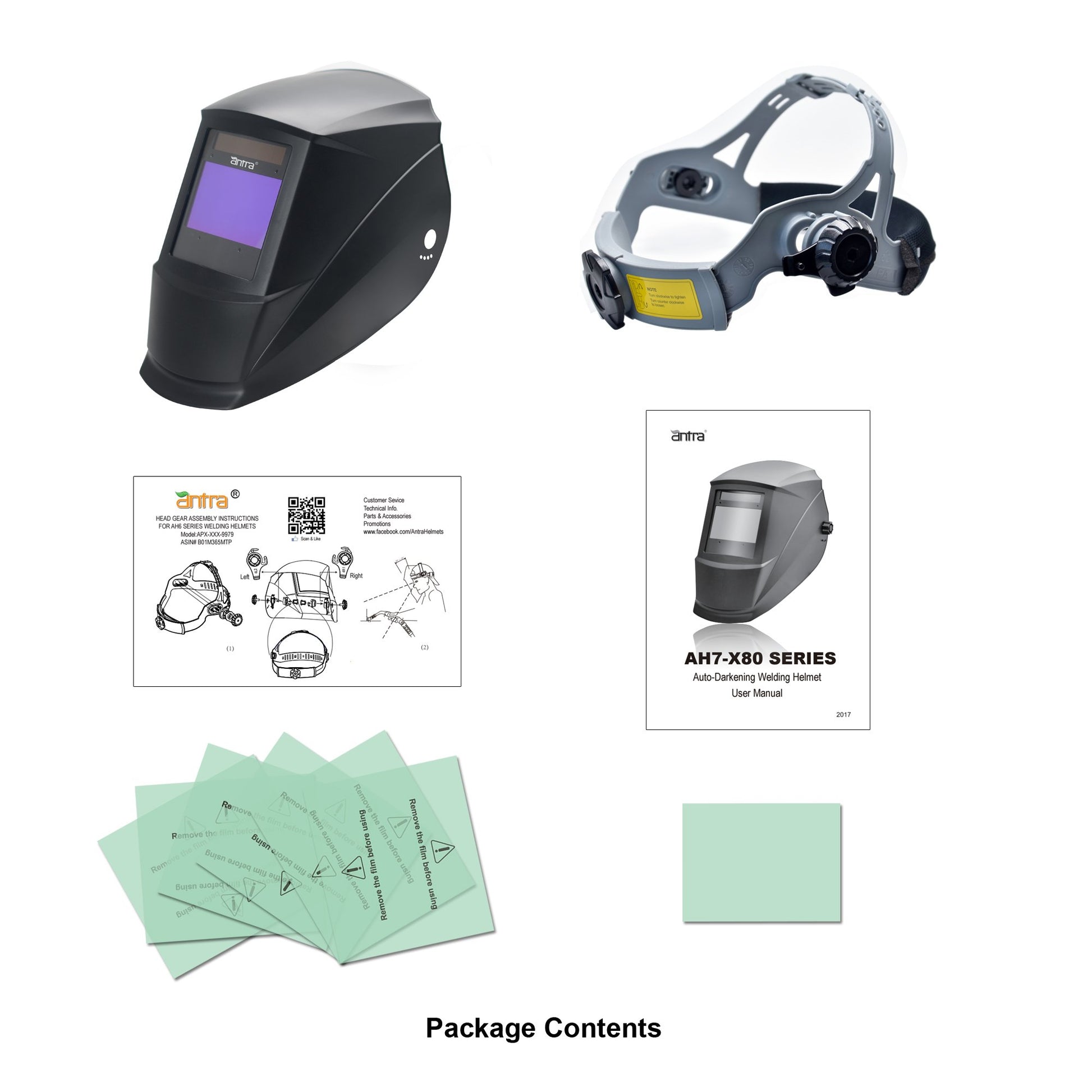

    *Note: Head gear may require simple assembly.
