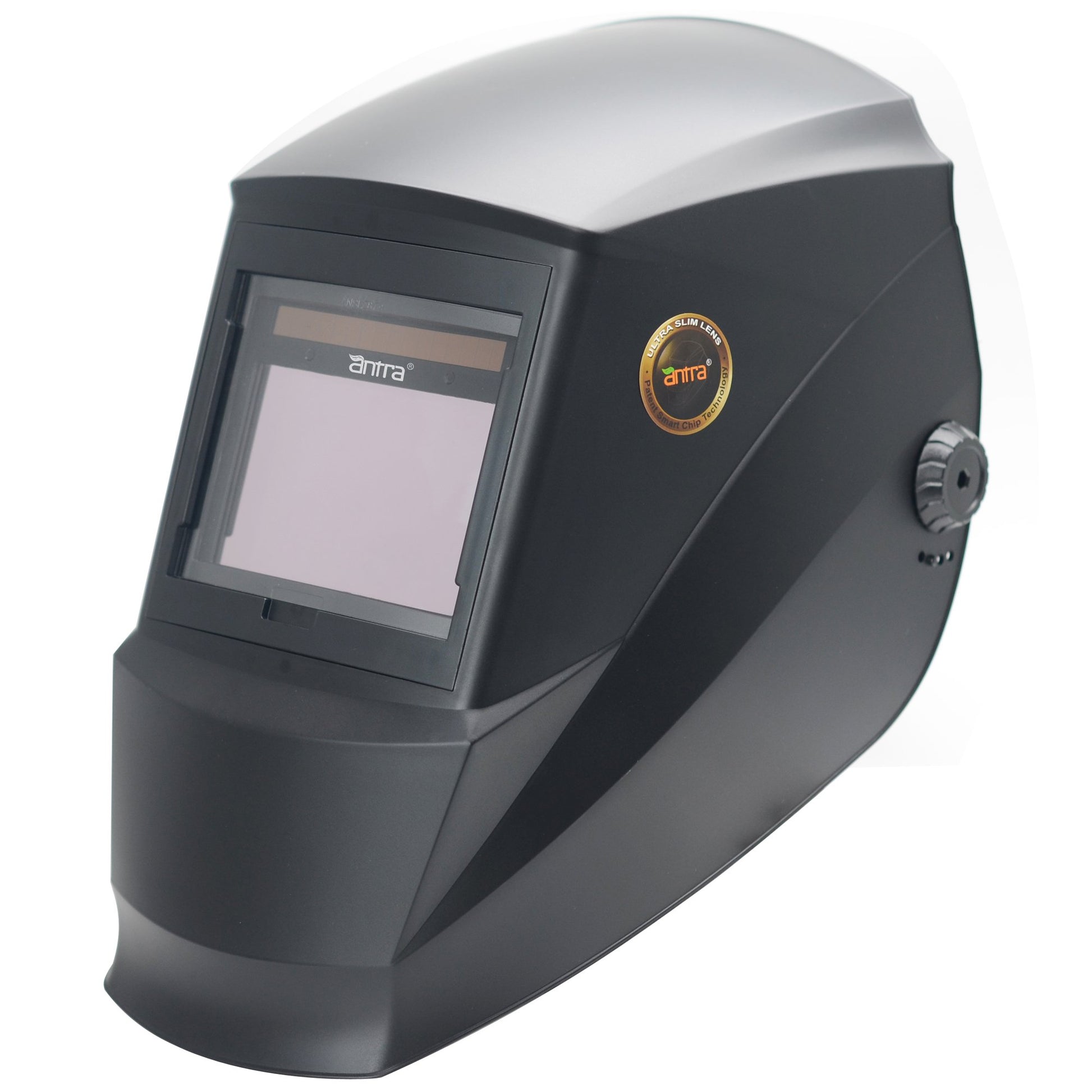

Light weight design is an important feature when experienced welders are searching for welding helmets. Less weight means less stress will be put on the shoulder and neck. Larger viewing area is also another feature that is in higher demand, however, it is challenging to make larger viewing window with light weight because major weight part is the auto darkening lens LCD. The Antra™ super thin technologies have made this perfectly combined, with a superb auto lens(98 x 62mm /3.86" x 2.5") weighting only 425gr/15oz. The super slim lens design reduces a total weight of the helmet about 10%.

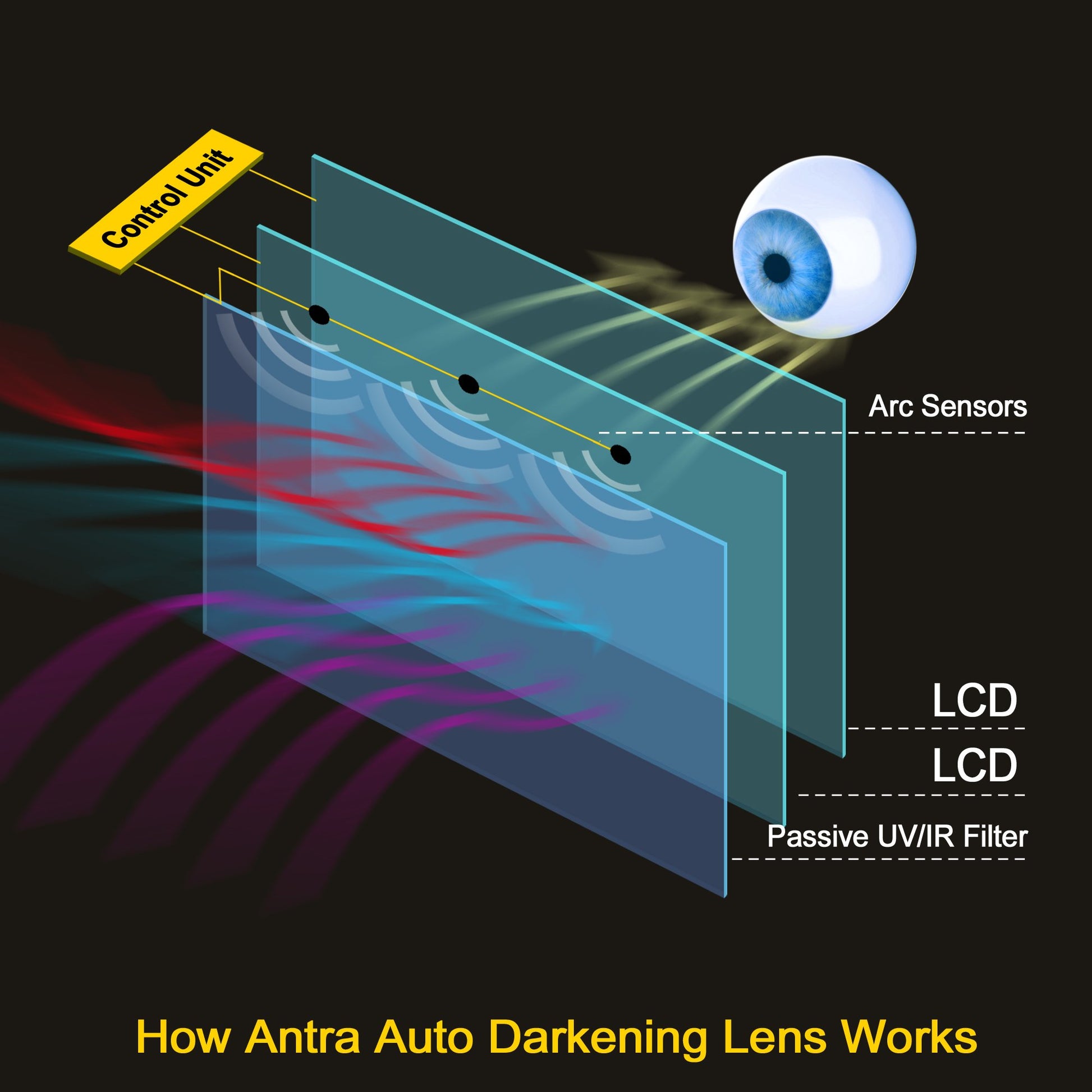

Antra™ AH6-X60S Series welding helmet is featured with the smart chip controlled 3-sensor auto darkening lens. It is extremely fast responsive to electric arc from TIG, MIG, MMA or Plasma applications. This super lightweight welding helmet is so versatile that it can be used on grinding, plasma cutting and welding applications. It is a perfect upgrade for goggles and/or fixed shade glass welding helmet at a fraction of cost.
- UV/IR Permanent Protection by Passive Filter, UV Shade>=DIN13
- Solar power cell design with replaceable batteries
- Fully automatic power ON/OFF.
- Can be used for TIG, MIG/MAG, MMA(Stick), Plasma Cutting and Grinding.
- 3 Sensor design ensures higher sensitivity
- Grinding feature on shade 4 and welding on shade 5-9/9-13
- Knob to adjust the delay time and sensitivity

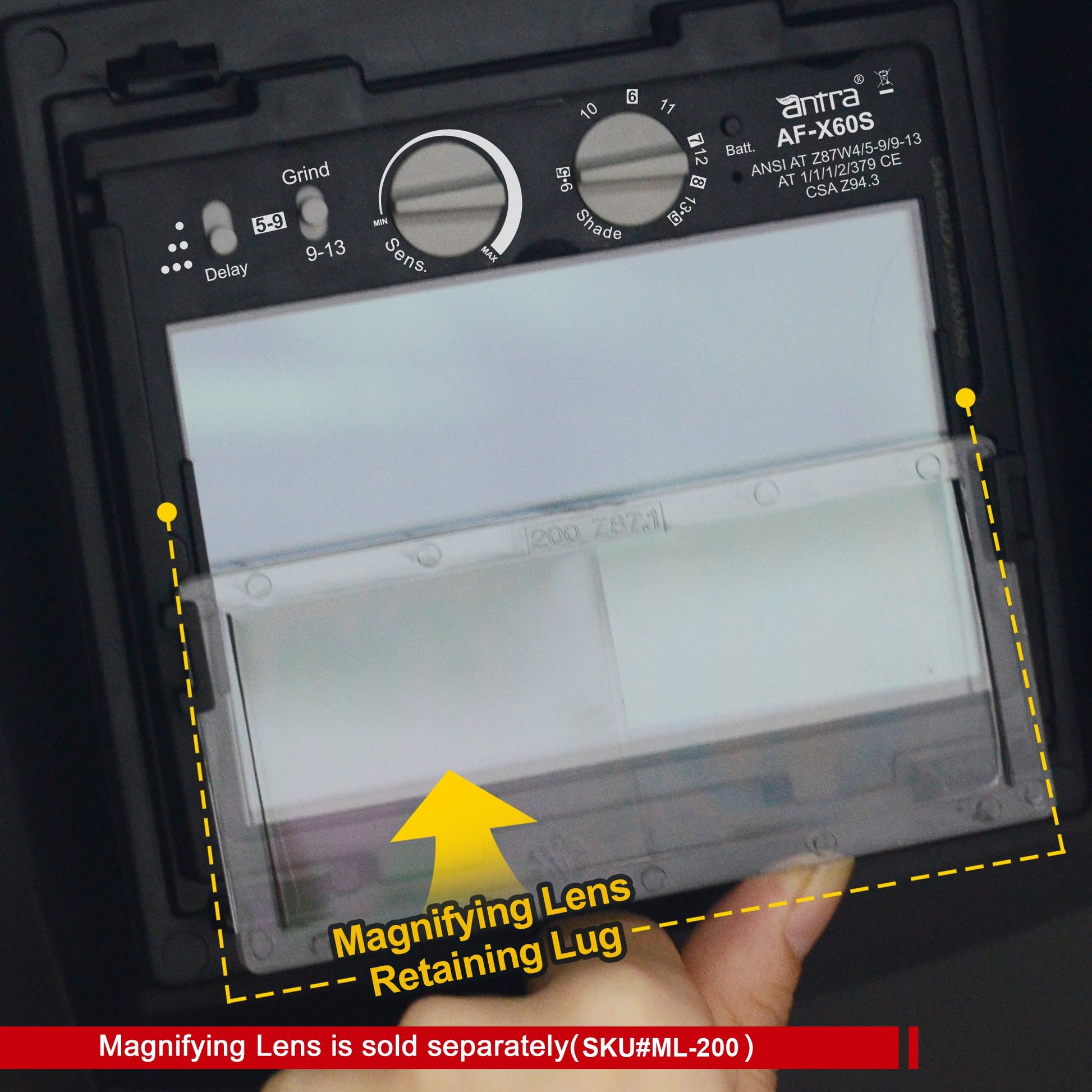

- Cheater lens compatible

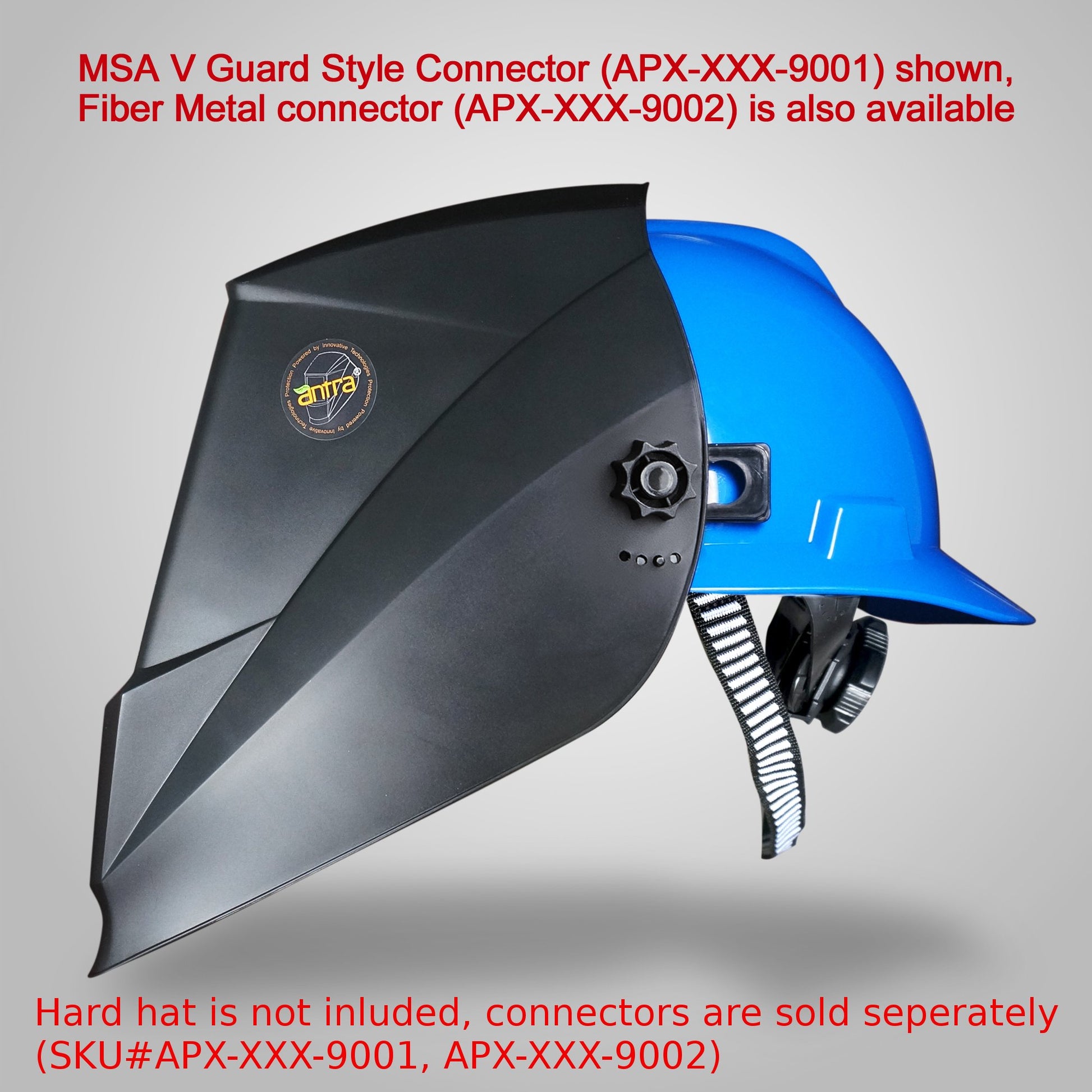

- Hard hat adapter (optional)
- Battery indicator and testing
- Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
- Super lightweight design, only 425g/15oz.

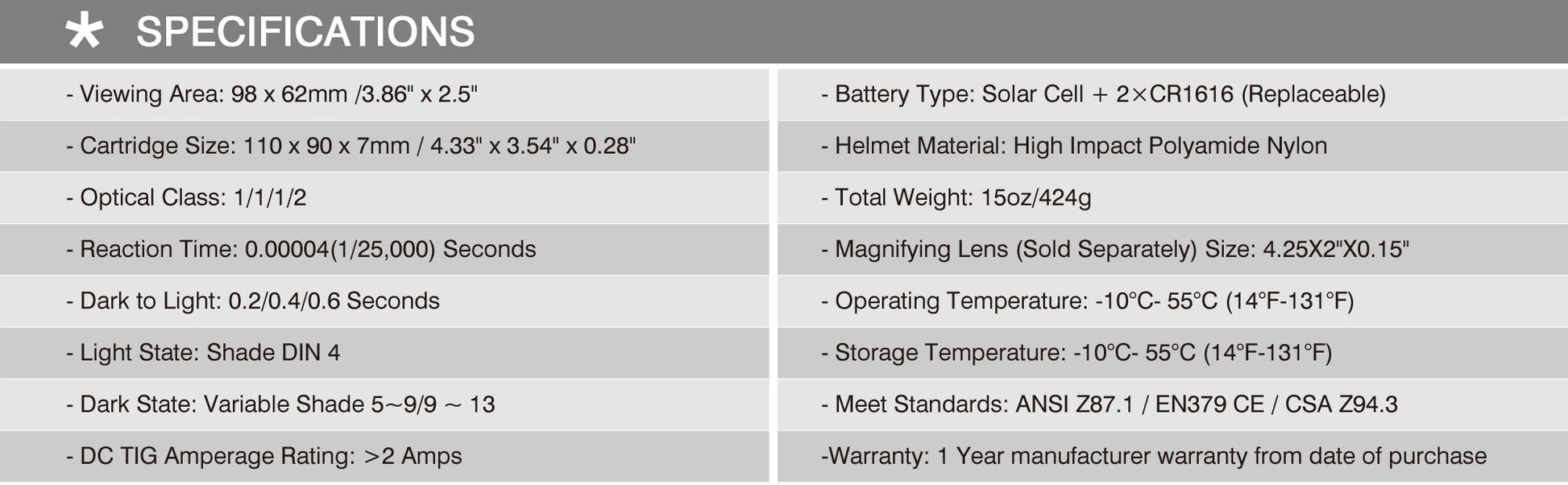

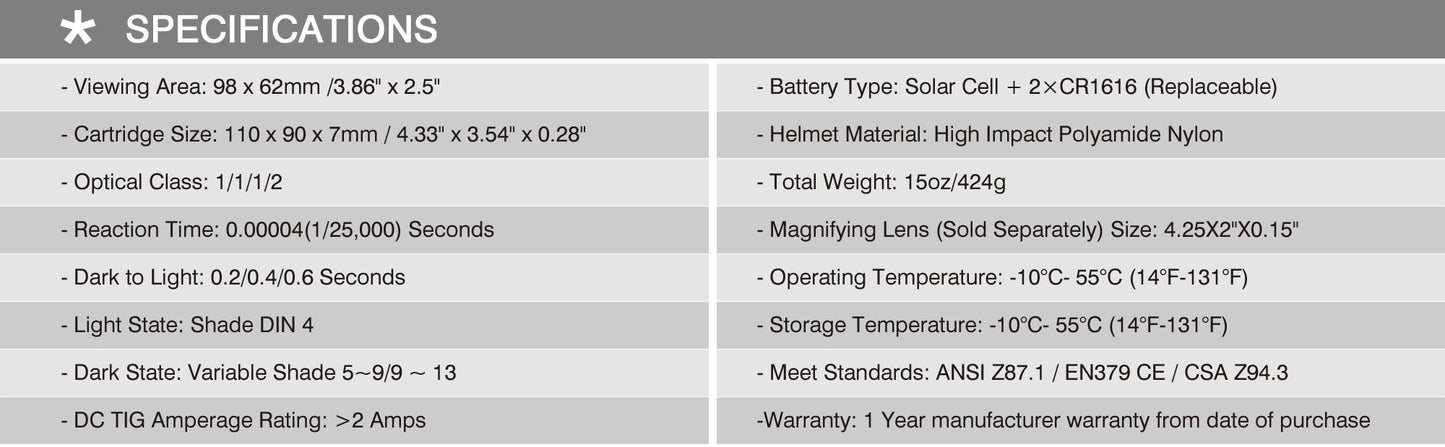

- Viewing Area: 98 x 62mm /3.86" x 2.5"
- Cartridge Size: 110 x 90 x 7mm / 4.33" x 3.54" x 0.28"
- Optical Class: 1/1/1/2
- Reaction Time: 0.00004(1/25,000) Seconds
- Dark to Light: 0.2,0.4,0.6 Seconds
- Light State: Shade DIN 4
- Dark State: Shade DIN 59/913
- DC TIG Amperage Rating: >2 Amps
- Battery Type: Solar Cell + 2X CR1616 (Replaceable)
- Helmet Material: High Impact Polyamide Nylon
- Operating Temperature: 10°C 55°C (14°F131°F)
- Storage Temperature: 10°C 55°C (14°F131°F)
- Meet Standards: ANSI Z87.1 / EN379 CE / CSA Z94.3
