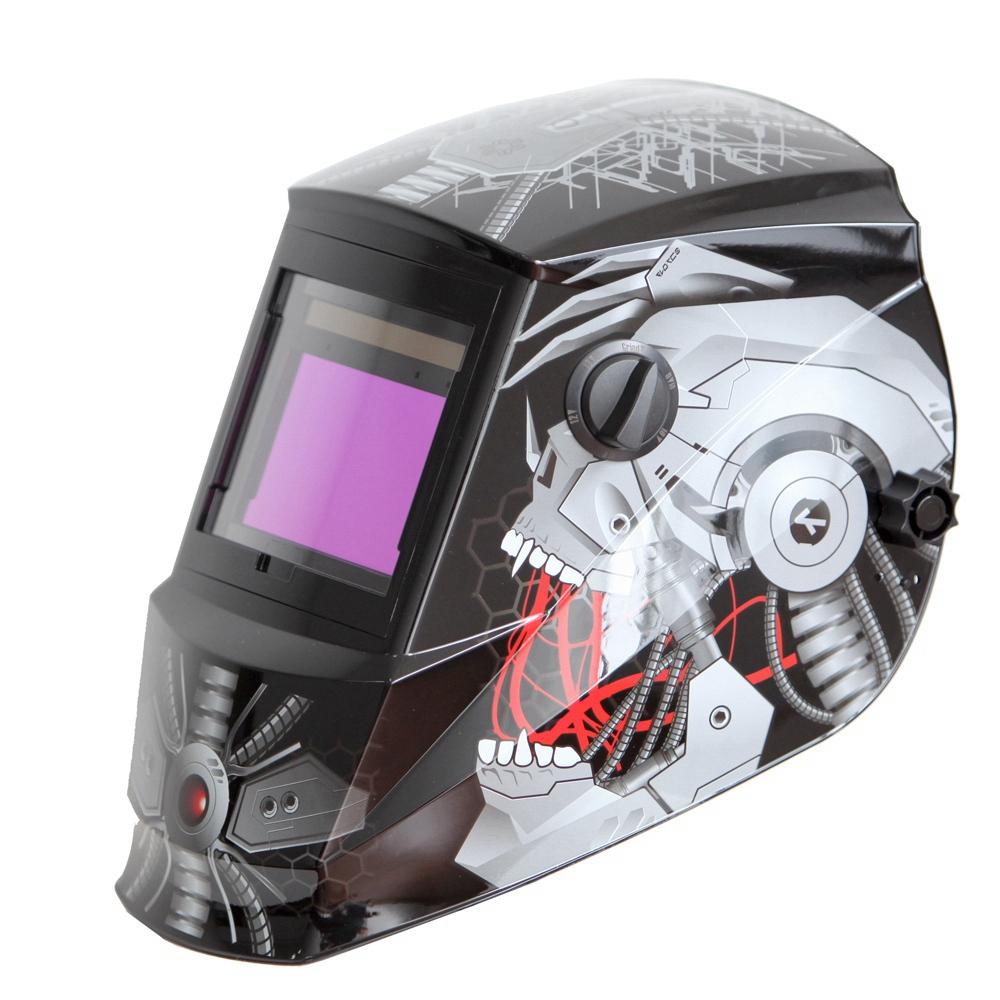

Antra™ AH6-660-6320 Solar Power Auto Darkening Welding Helmet Shade 4/5-9/9-13

Antra™ AH6-660-6320 Solar Power Auto Darkening Welding Helmet Shade 4/5-9/9-13

Regular price $85.98 USD
Regular price $108.99 USD Sale price $85.98 USD
Sale Sold out

Antra™  AH6-660 Series welding helmet is featured with the smart chip controlled 4 sensor auto darkening lens, which is extremely fast responsive to electric arc from MIG, MMA or Plasma applications. The luxury big viewing area 3.86X2.50” provides a much better vision of the whole welding process, which ensures a better finish of welding or cutting. This light weight welding helmet is so versatile that it can be used on grinding, cutting and welding applications. It is a perfect upgrade for goggles and fixed shade glass welding helmet at a fraction of cost.

Features:

  • Solar power cell design with replaceable batteries
  • Fully automatic power ON/OFF.
  • Can be used for MIG/MAG, PLASMA AND ARC welding grinding.

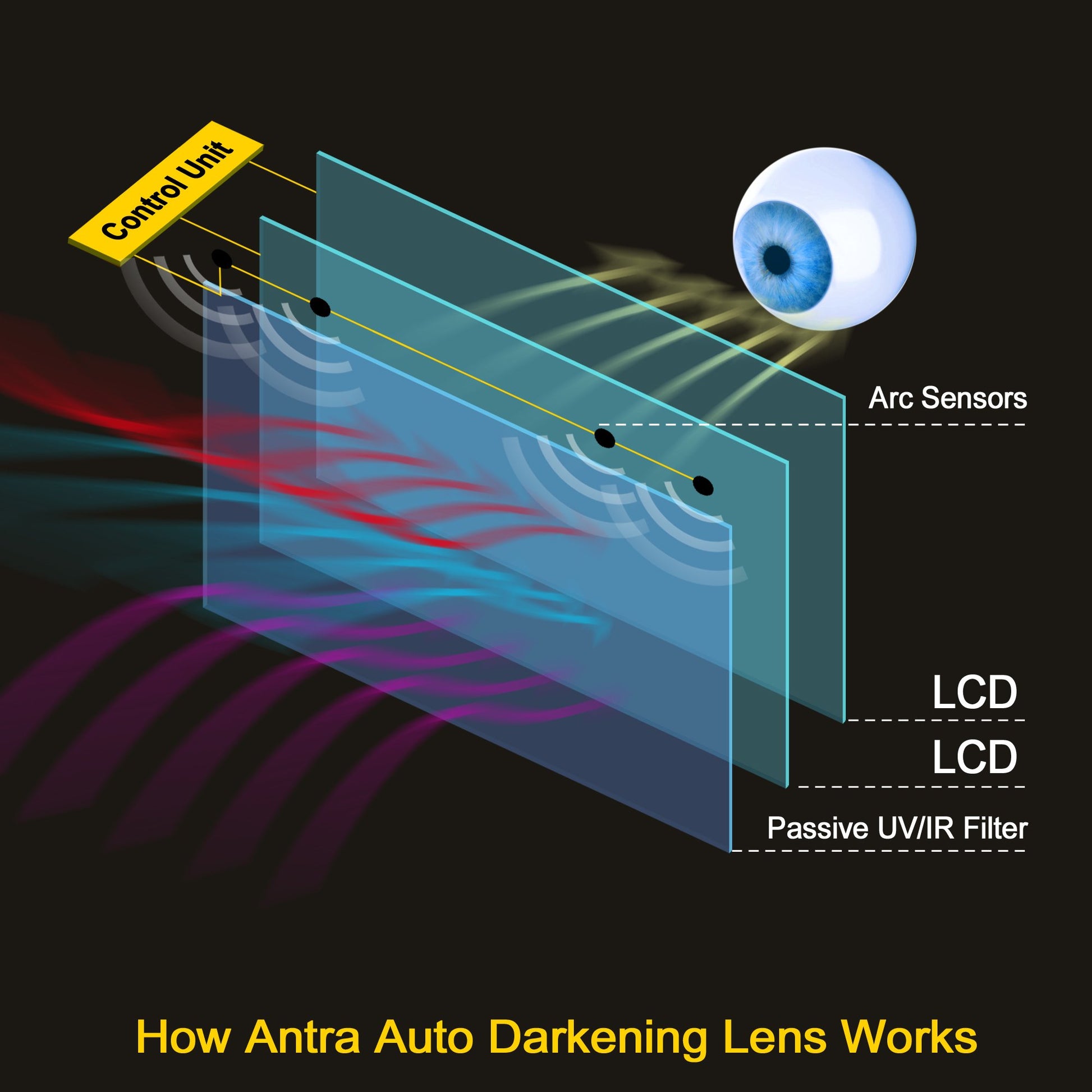

  • 4 Sensor design ensures higher sensitivity
  • Grinding feature on shade 4 and welding on shade 5-9/9-13
  • Knob to adjust the delay time and sensitivity

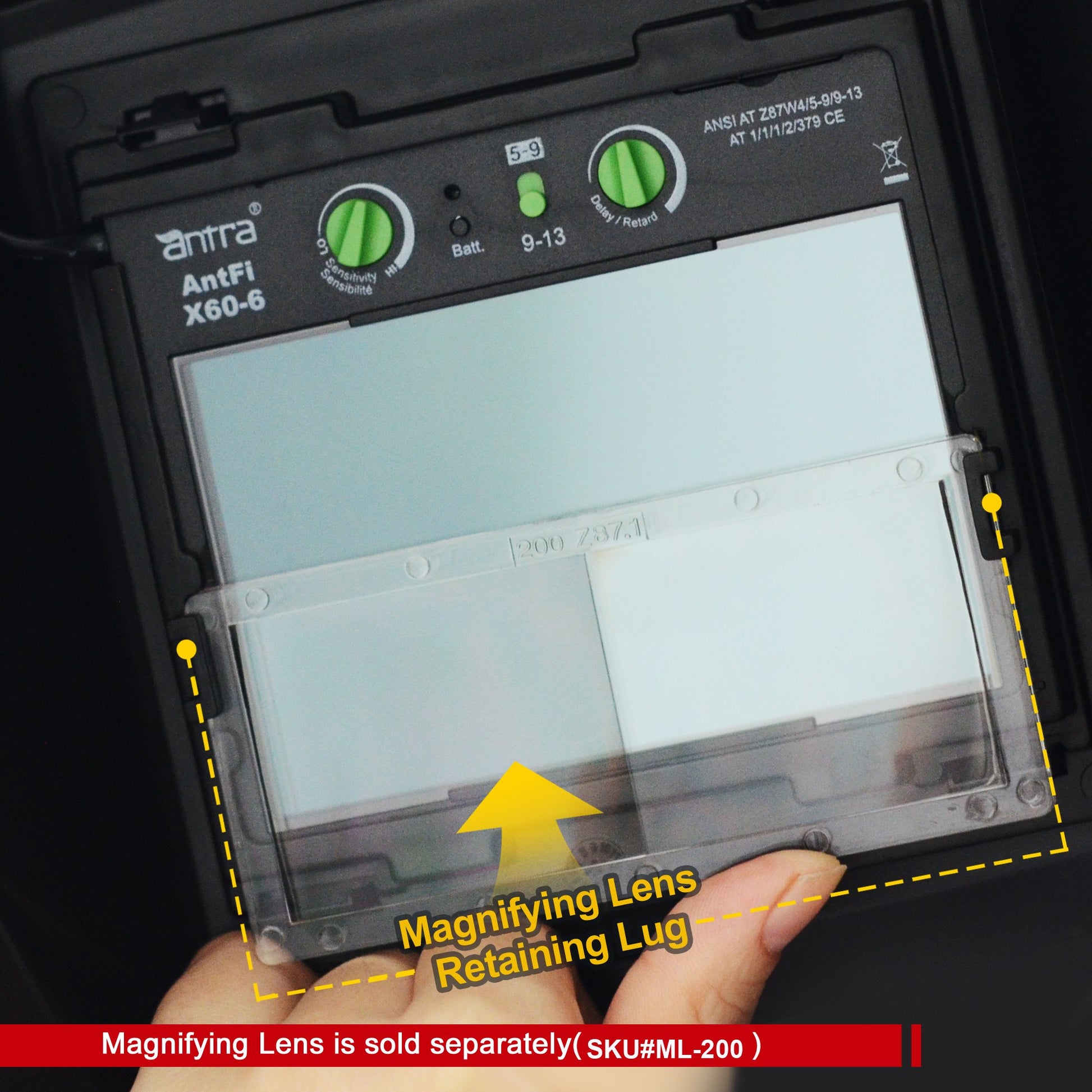

  • Cheater lens compatible

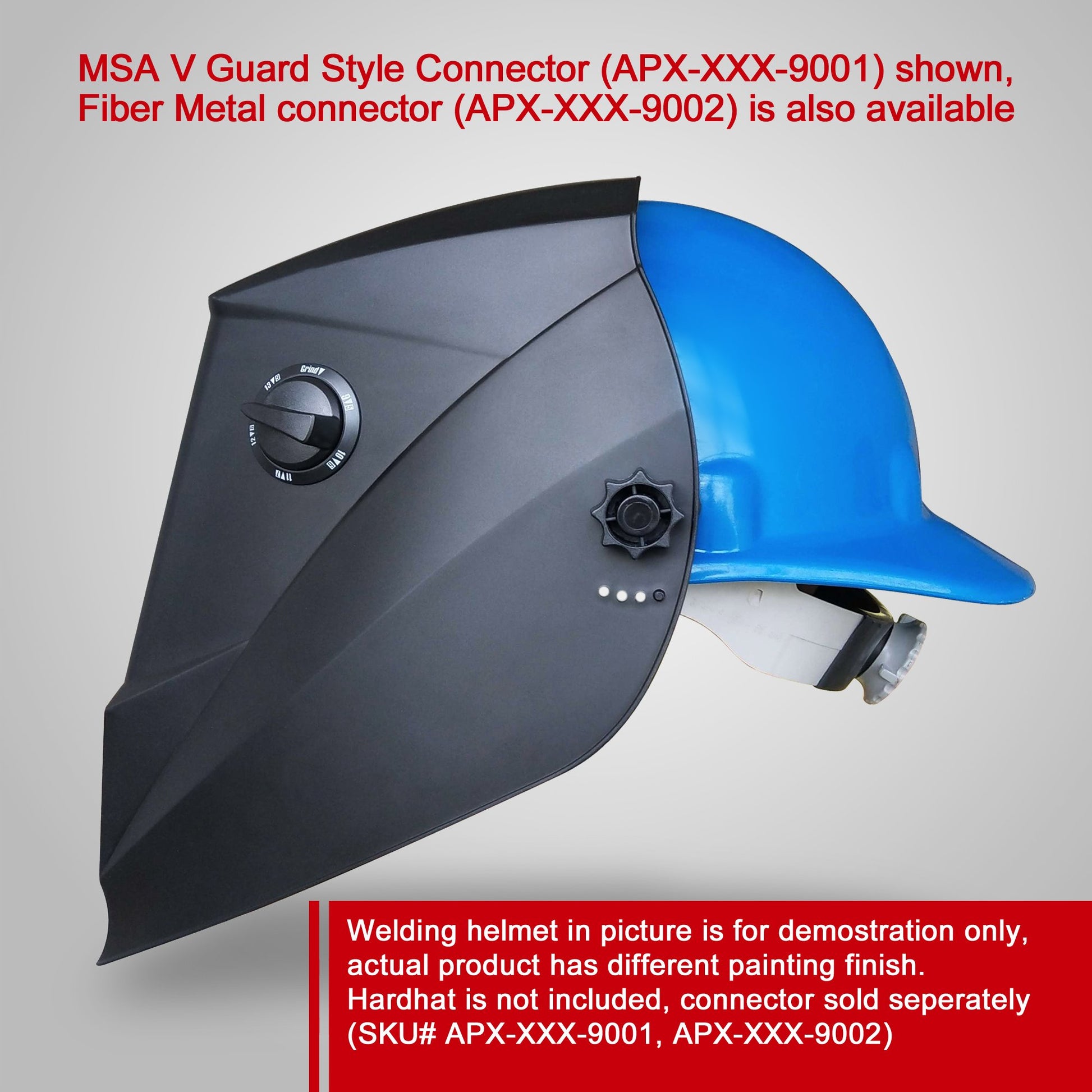

  • Hard hat adapter (optional)
  • Battery indicator and testing
  • Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
  • Very light design, only 515gr/18oz.

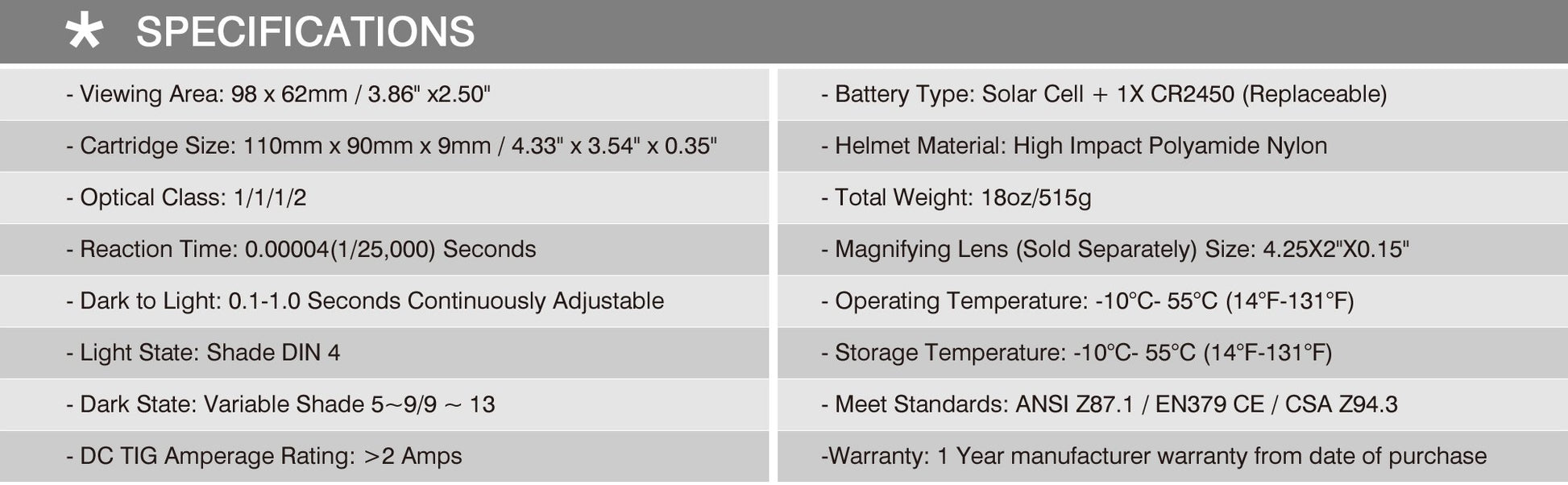

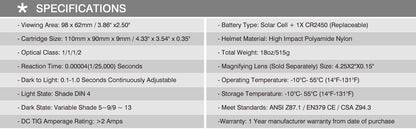

Specifications:

  • Viewing Area: 96mm x 64mm / 3.78" x 2.5"
  • Cartridge Size: 110mm x 90mm x 9mm / 4.33" x 3.54" x 0.35"
  • Optical Class: 1/1/1/2
  • Reaction Time: 0.00004(1/25,000) Seconds
  • Dark to Light: 0.1-1 Seconds
  • Light State: Shade DIN 4
  • Dark State: Shade DIN 5-9/9-13
  • Battery: Solar Cell + 1X CR2450 (Battery compartment is located out side of the lens, close to Shade knob).  or Old model AH6-660 ( 2X CR1616,Located on the lens, Lens has to be popped off from the shield)
  • Helmet Material: High Impact Polyamide Nylon
  • Operating Temperature: -10°C- 55°C (14°F-131°F)
  • Storage Temperature: -10°C- 55°C (14°F-131°F)
  • Meet Standards: ANSI Z87.1 / EN379 CE / CSA Z94.3
