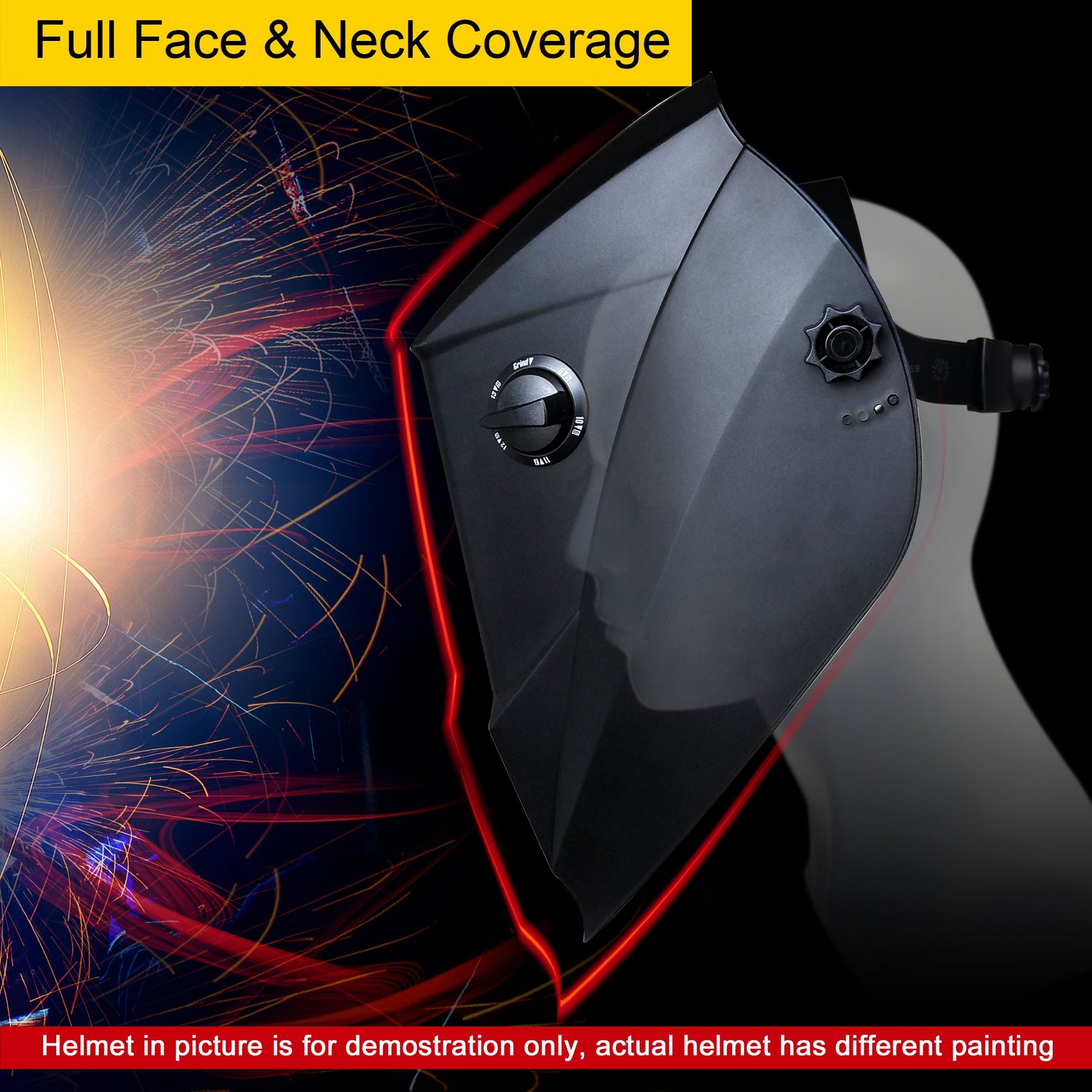

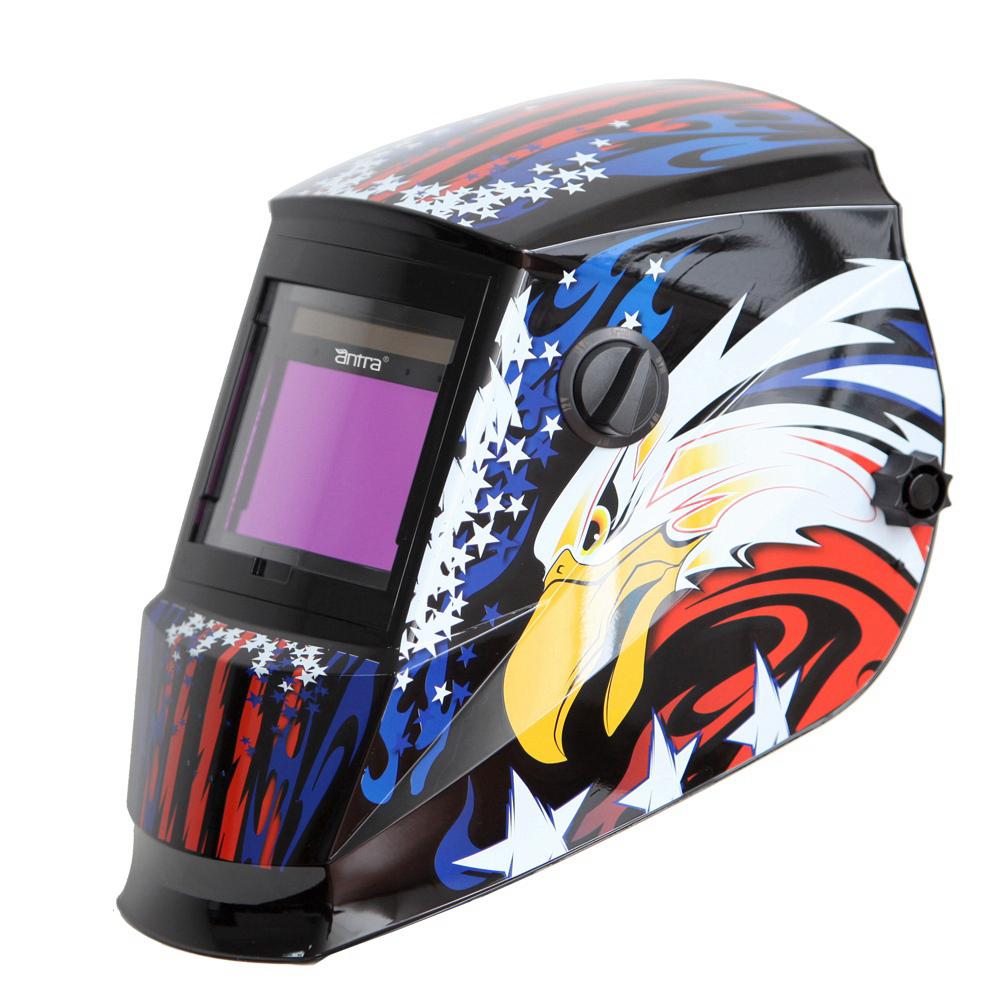

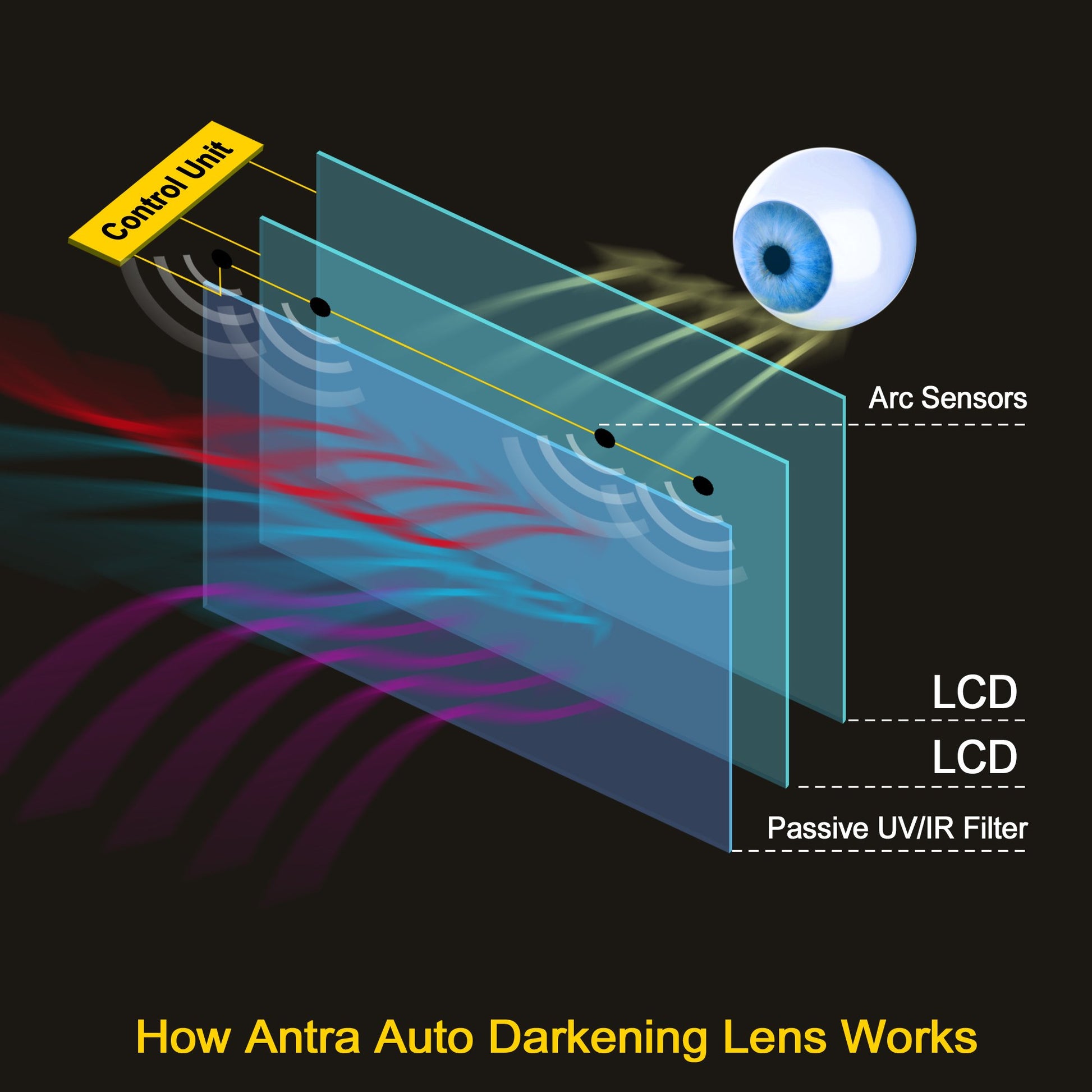

Antra™ AH6-660 Series welding helmet is featured with the smart chip controlled 4 sensor auto darkening lens, which is extremely fast responsive to electric arc from MIG, MMA or Plasma applications. The luxury big viewing area 3.86X2.50” provides a much better vision of the whole welding process, which ensures a better finish of welding or cutting. This light weight welding helmet is so versatile that it can be used on grinding, cutting and welding applications. It is a perfect upgrade for goggles and fixed shade glass welding helmet at a fraction of cost.
Features:
UV/IR Permanent Protection by Passive Filter, UV Shade>=DIN13
Solar power cell design with replaceable batteries
Fully automatic power ON/OFF.
Can be used for TIG, MIG/MAG, MMA(Stick), Plasma Cutting and Grinding.
4 Sensor design ensures higher sensitivity
Grinding feature on shade 4 and welding on shade 5-9/9-13
Knob to adjust the delay time and sensitivity

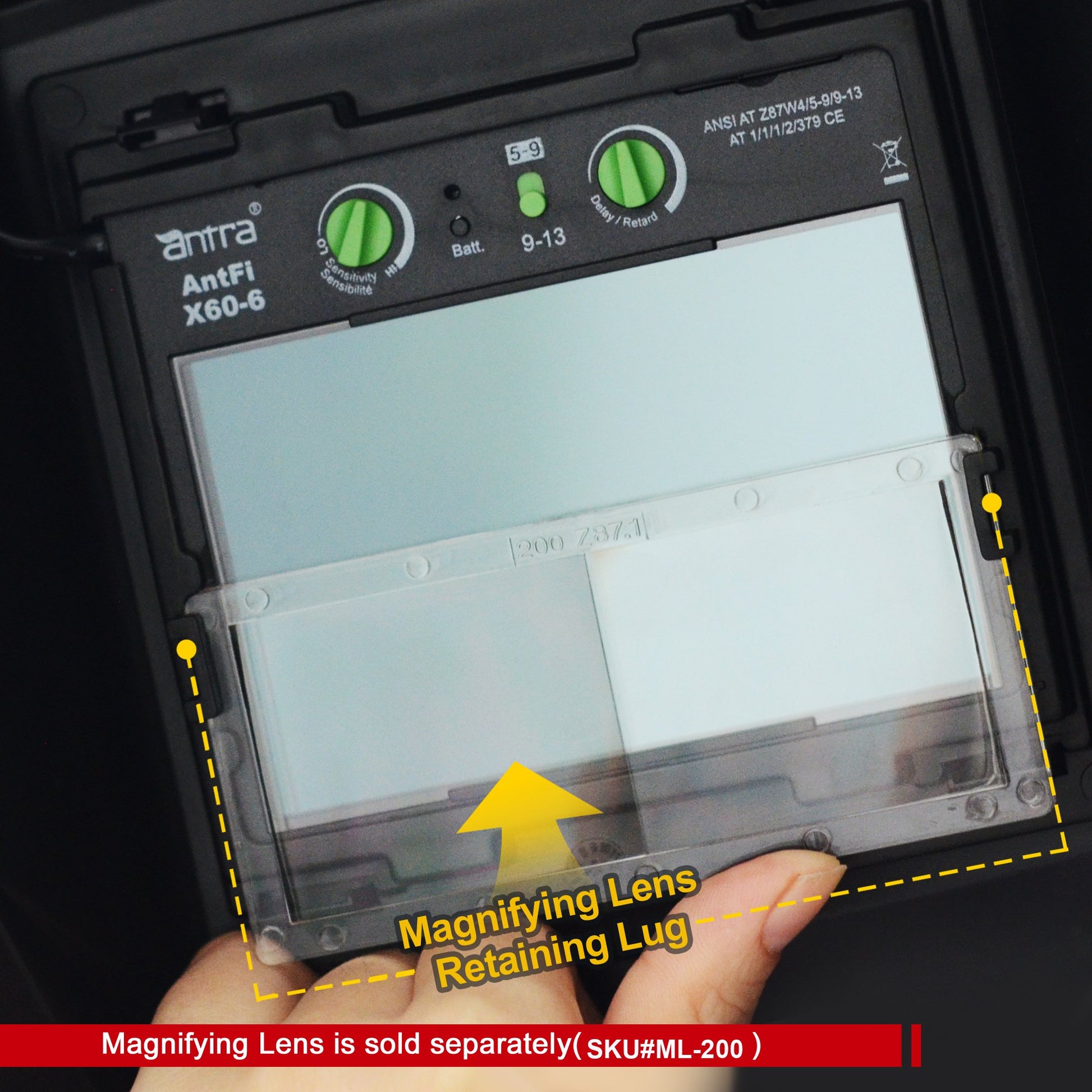

Cheater lens compatible

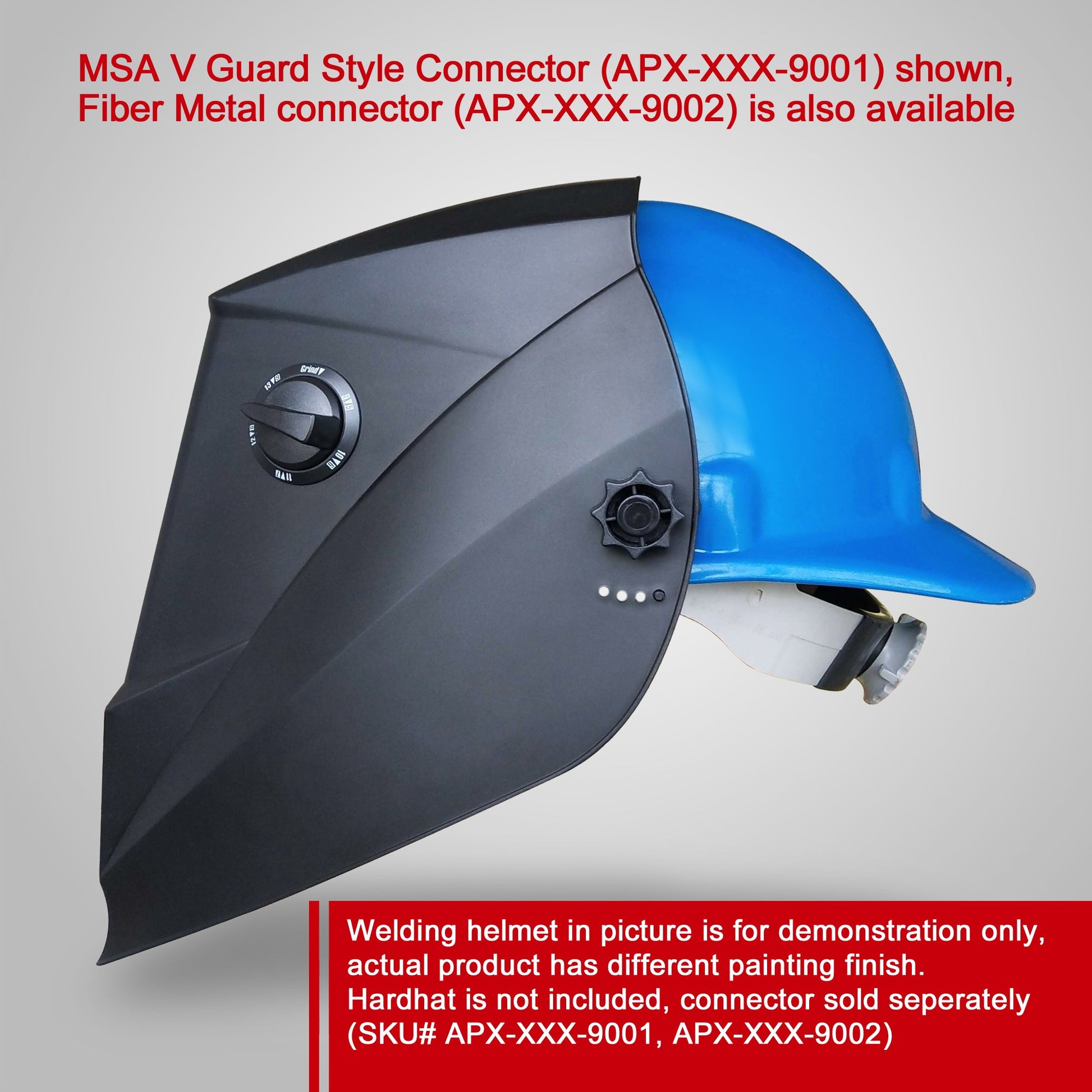

Hard hat adapter (optional)
Battery indicator and testing
Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
Very light design, only 515gr/18oz.

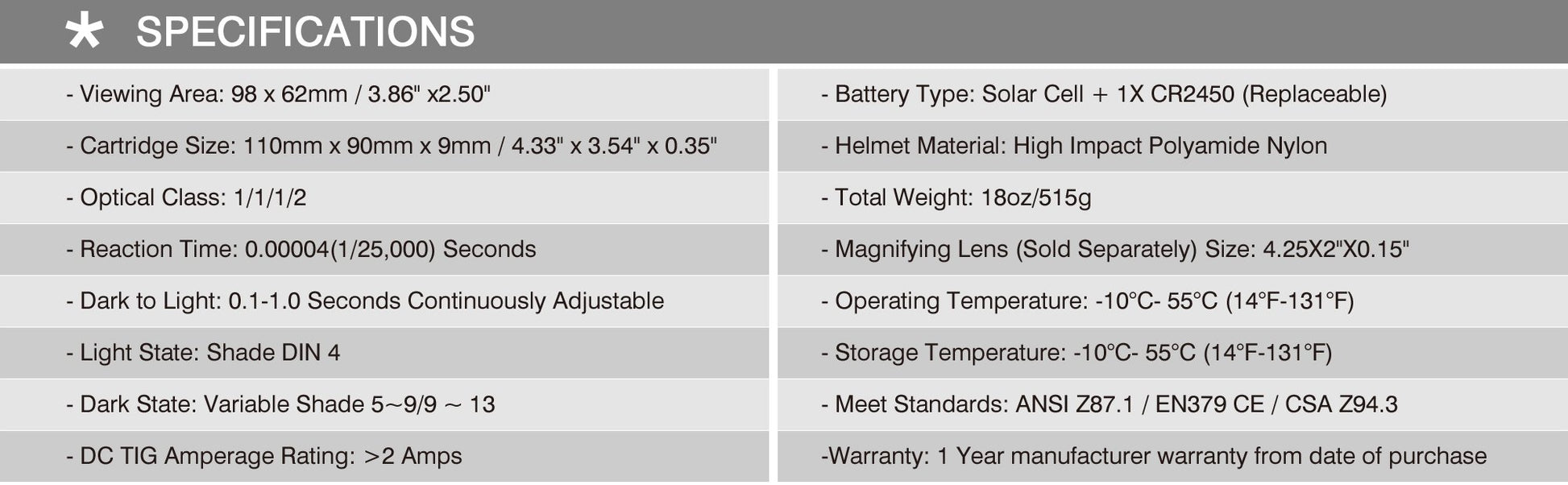

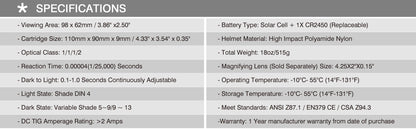

Specifications:
Viewing Area: 96mm x 64mm / 3.78" x 2.5"
Cartridge Size: 110mm x 90mm x 9mm / 4.33" x 3.54" x 0.35"
Optical Class: 1/1/1/2
Reaction Time: 0.00004(1/25,000) Seconds
Dark to Light: 0.1-1 Seconds
Light State: Shade DIN 4
Dark State: Shade DIN 5-9/9-13
DC TIG Amperage Rating: >2 Amps
Battery:Solar Cell + 1X CR2450 (Battery compartment is located out side of the lens, close to Shade knob). or Old model AH6-660 ( 2X CR1616,Located on the lens, Lens has to be popped off from the shield)
