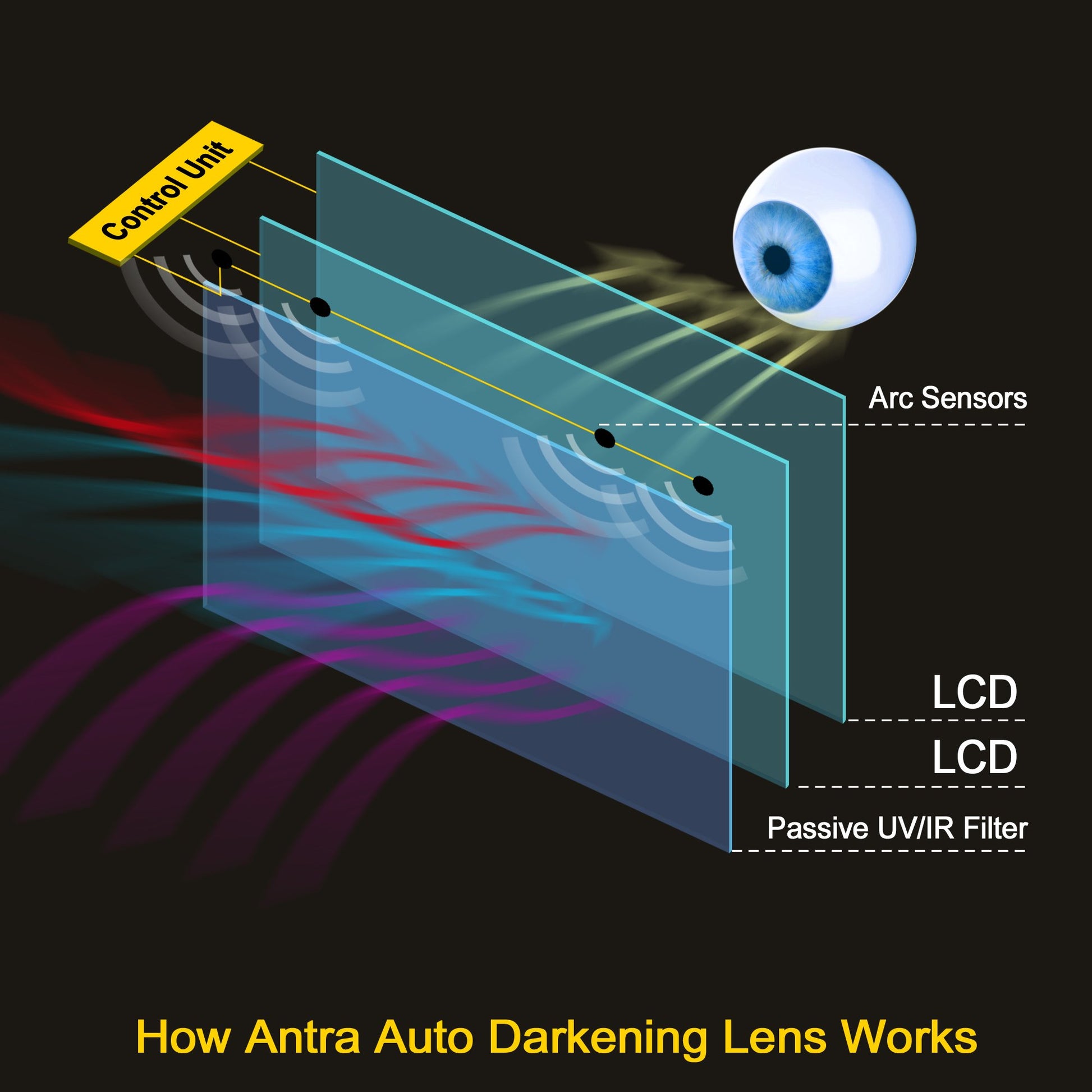

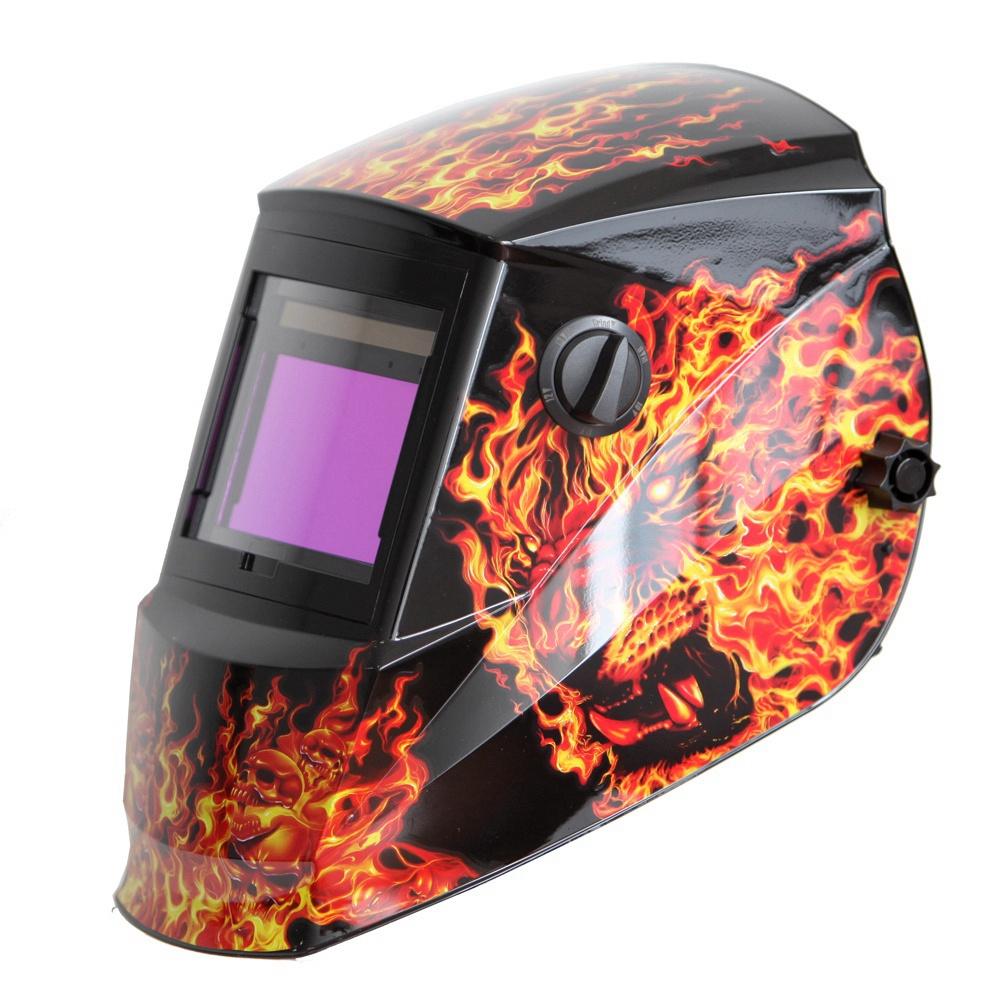

Antra™ AH6-660 Series welding helmet is featured with the smart chip controlled 4 sensor auto darkening lens, which is extremely fast responsive to electric arc from MIG, MMA or Plasma applications. The luxury big viewing area 3.86X2.50” provides a much better vision of the whole welding process, which ensures a better finish of welding or cutting. This light weight welding helmet is so versatile that it can be used on grinding, cutting and welding applications. It is a perfect upgrade for goggles and fixed shade glass welding helmet at a fraction of cost.
- UV/IR Permanent Protection by Passive Filter, UV Shade>=DIN13
- Solar power cell design with replaceable batteries
- Fully automatic power ON/OFF.
- Can be used for TIG, MIG/MAG, MMA(Stick), Plasma Cutting and Grinding.
- 4 Sensor design ensures higher sensitivity
- Grinding feature on shade 4 and welding on shade 5-9/9-13
- Knob to adjust the delay time and sensitivity

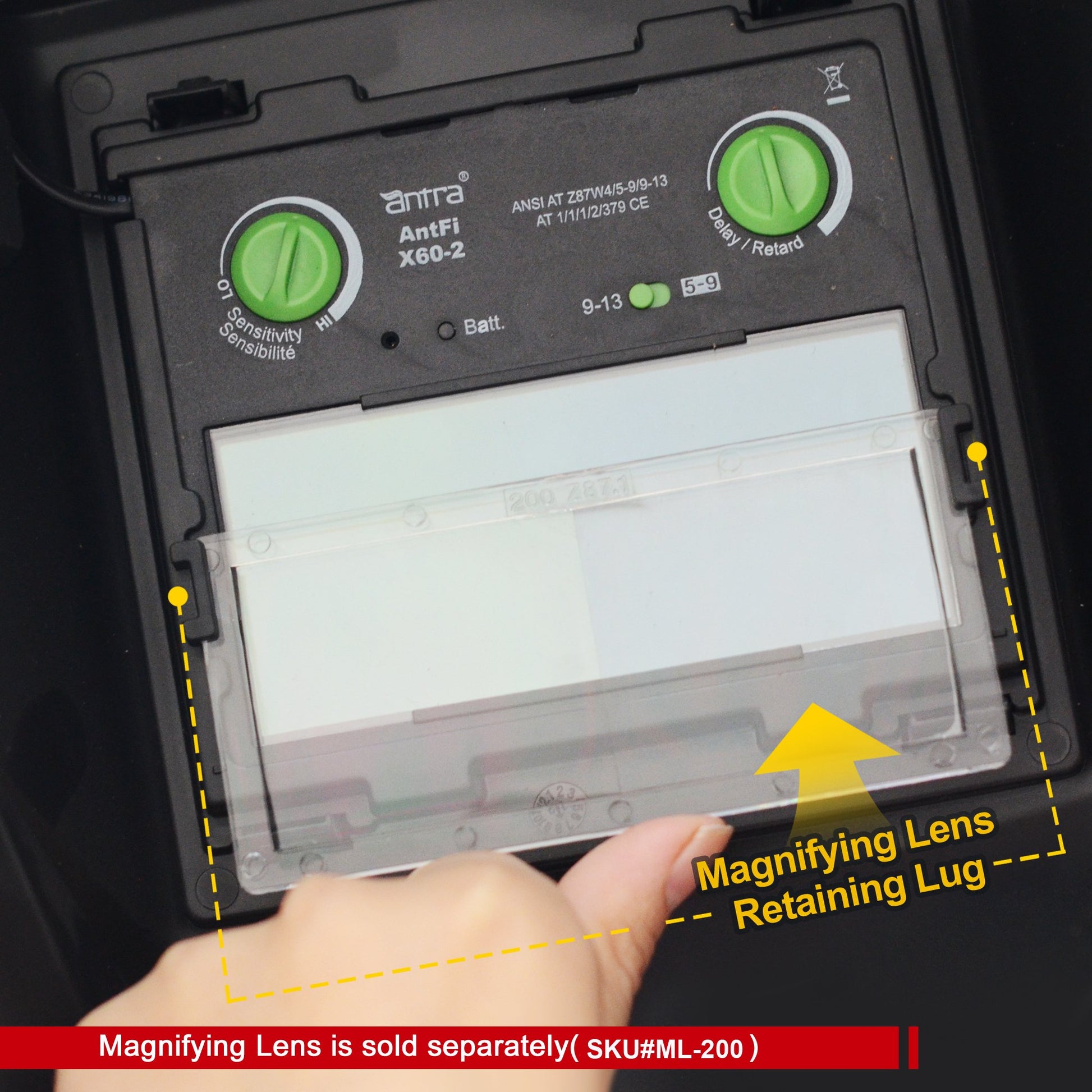

- Cheater lens compatible

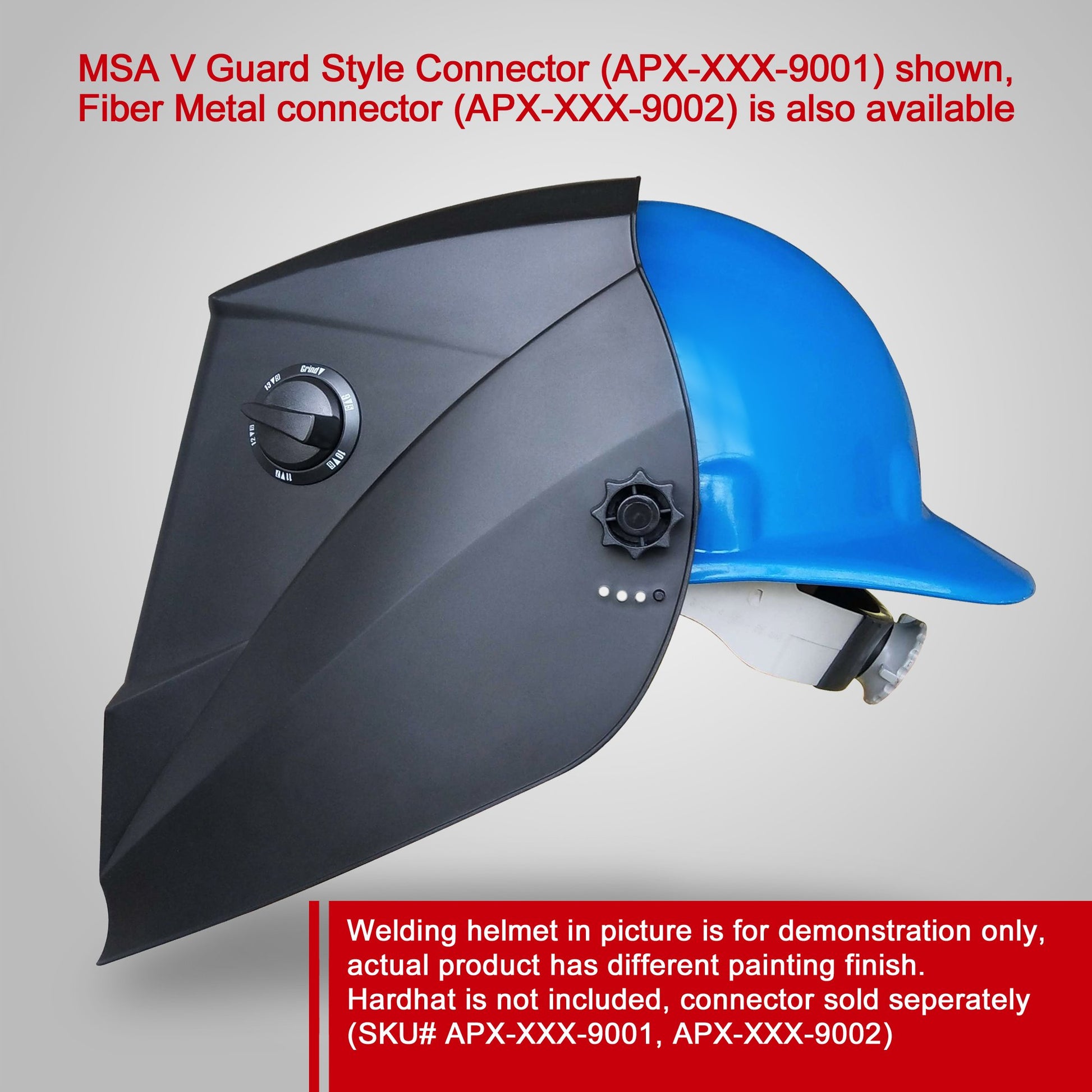

- Hard hat adapter (optional)
- Battery indicator and testing
- Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
- Very light design, only 515gr/18oz.

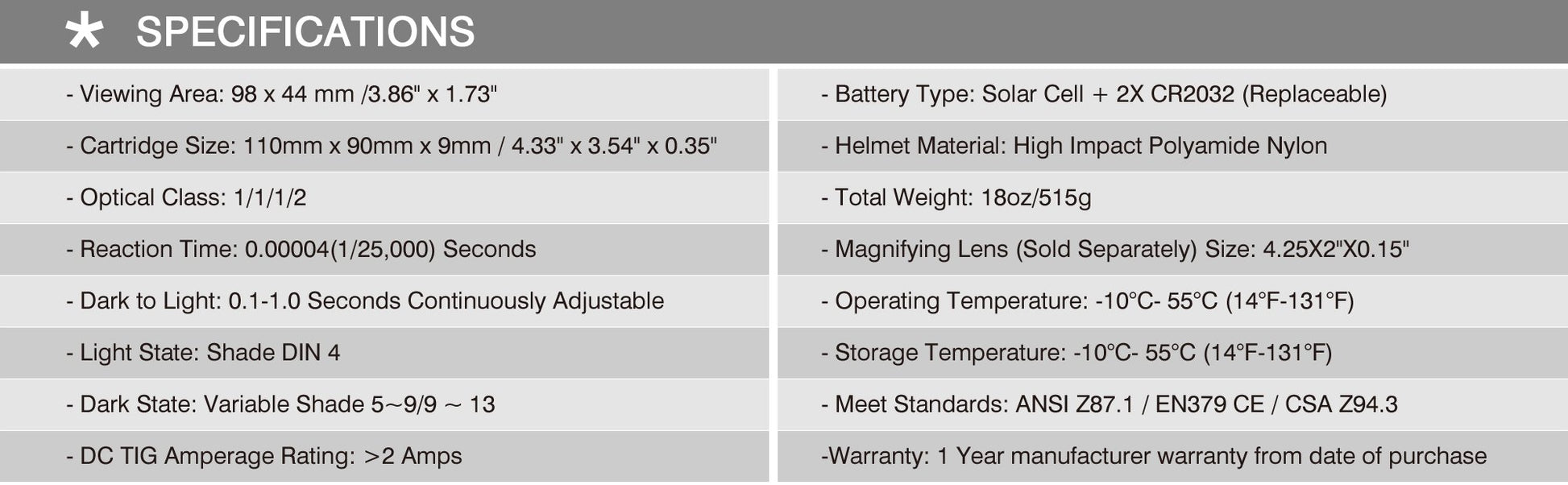

- Viewing Area: 96mm x 64mm / 3.78" x 2.5"
- Cartridge Size: 110mm x 90mm x 9mm / 4.33" x 3.54" x 0.35"
- Optical Class: 1/1/1/2
- Reaction Time: 0.00004(1/25,000) Seconds
- Dark to Light: 0.1-1 Seconds
- Light State: Shade DIN 4
- Dark State: Shade DIN 5-9/9-13
- DC TIG Amperage Rating: >2 Amps
- Battery: Solar Cell + 1X CR2450 (Battery compartment is located out side of the lens, close to Shade knob). or Old model AH6-660 ( 2X CR1616,Located on the lens, Lens has to be popped off from the shield)
- Helmet Material: High Impact Polyamide Nylon
- Operating Temperature: -10°C- 55°C (14°F-131°F)
- Storage Temperature: -10°C- 55°C (14°F-131°F)
- Meet Standards: ANSI Z87.1 / EN379 CE / CSA Z94.3
- Warranty: 1 Year manufacturer warranty
