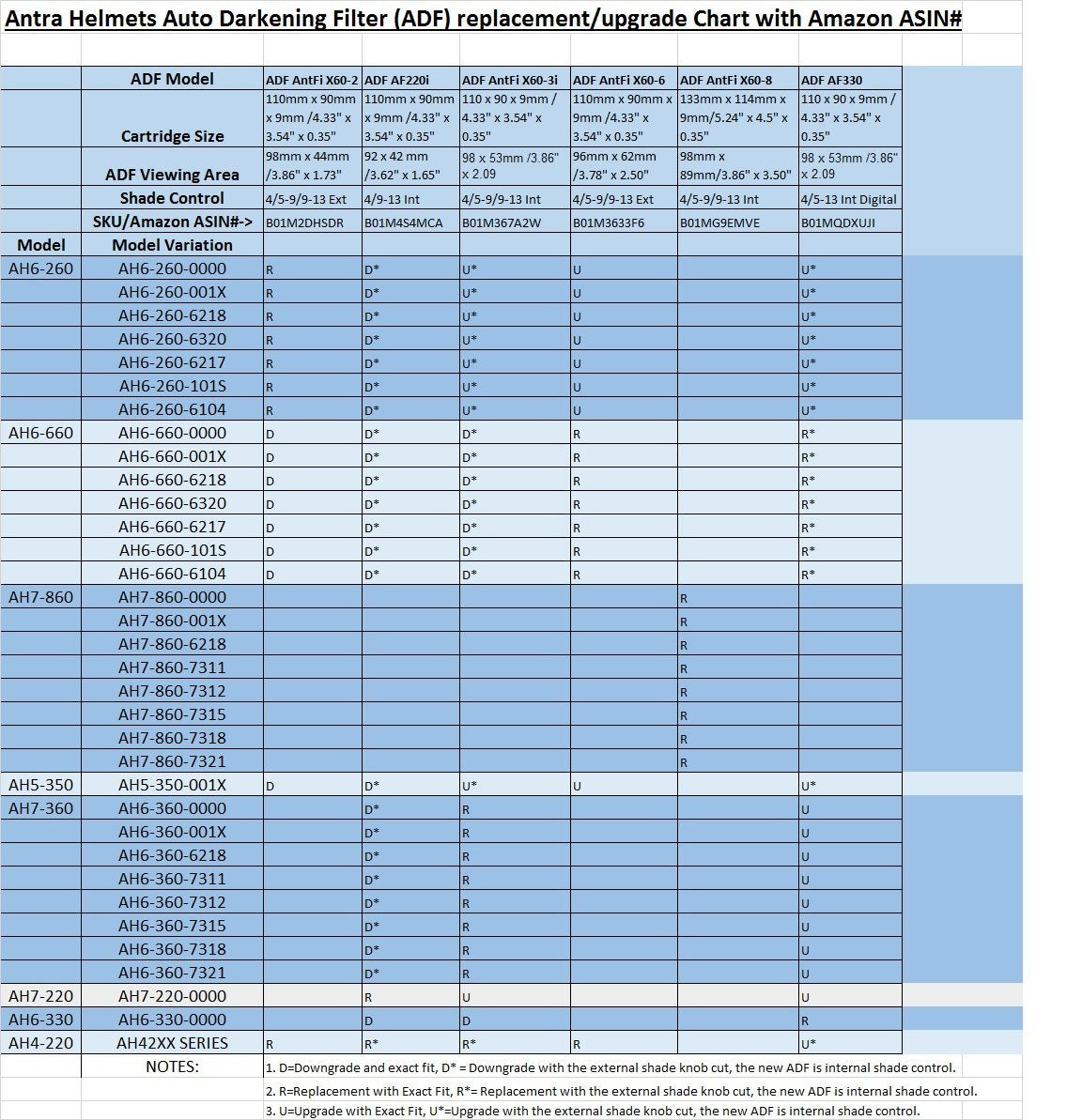

Auto Darkening Lens for Antra™ Helmets. May fit in other brand helmets, however it is at owner’s risk by doing so and warranty will be voided for lens/filters installed on other brand helmet shields. Please refer to the cross-reference chart, small modification may be required. One year warranty on all Antra™ auto darkening lens.
Features:
Solar power cell design with replaceable batteries
Fully automatic power ON/OFF.
Can be used for MIG/MAG, TIG AND ARC welding grinding.
4 Sensor design ensures higher sensitivity
Grinding feature on shade 4 and welding on shade 5-9/9-13
Knob to adjust the delay time and sensitivity
Cheater lens compatible
Battery indicator and testing
Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
Specifications:

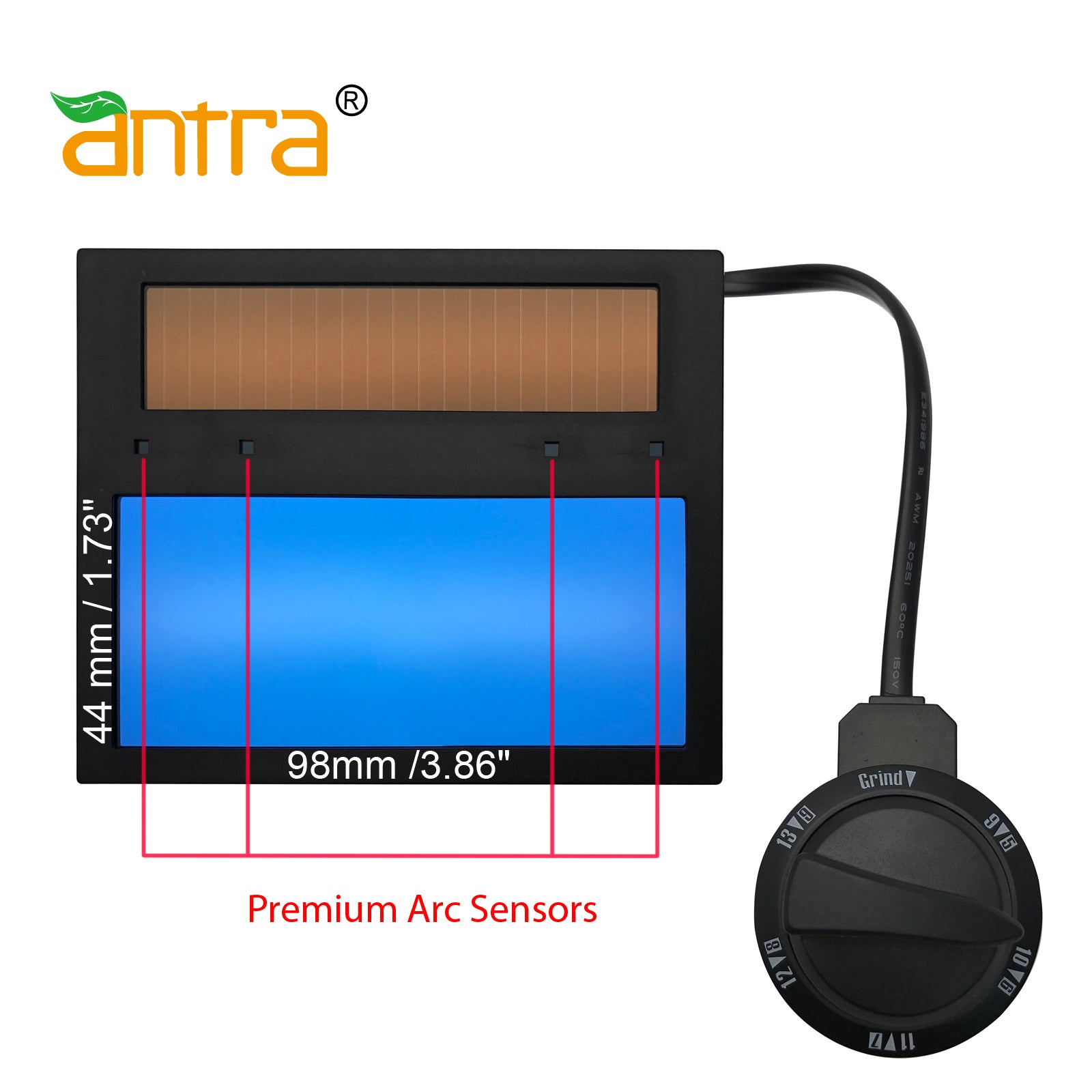

Viewing Area: 96mm x 52.5mm / 3.78" x1.78"

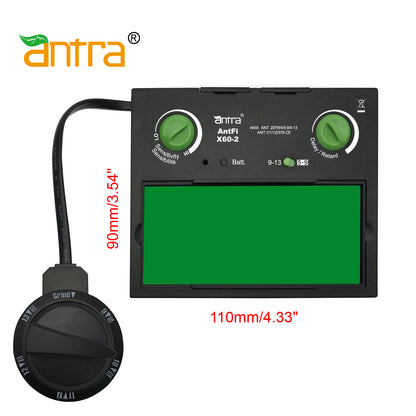

Cartridge Size: 110mm x 90mm x 9mm / 4.33" x 3.54" x 0.35"
Optical Class: 1/1/1/2
Reaction Time: 0.00004(1/25,000) Seconds
Dark to Light: 0.1-1 Seconds
Light State: Shade DIN 4
Dark State: Shade DIN 5-9/9-13
DC TIG Amperage Rating: >5 Amps

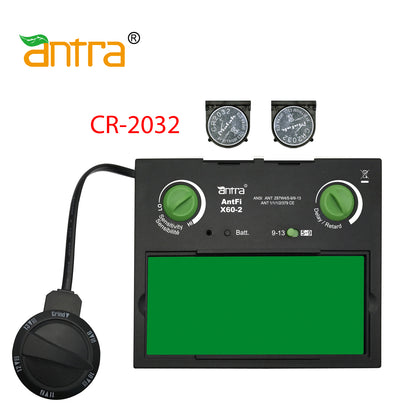

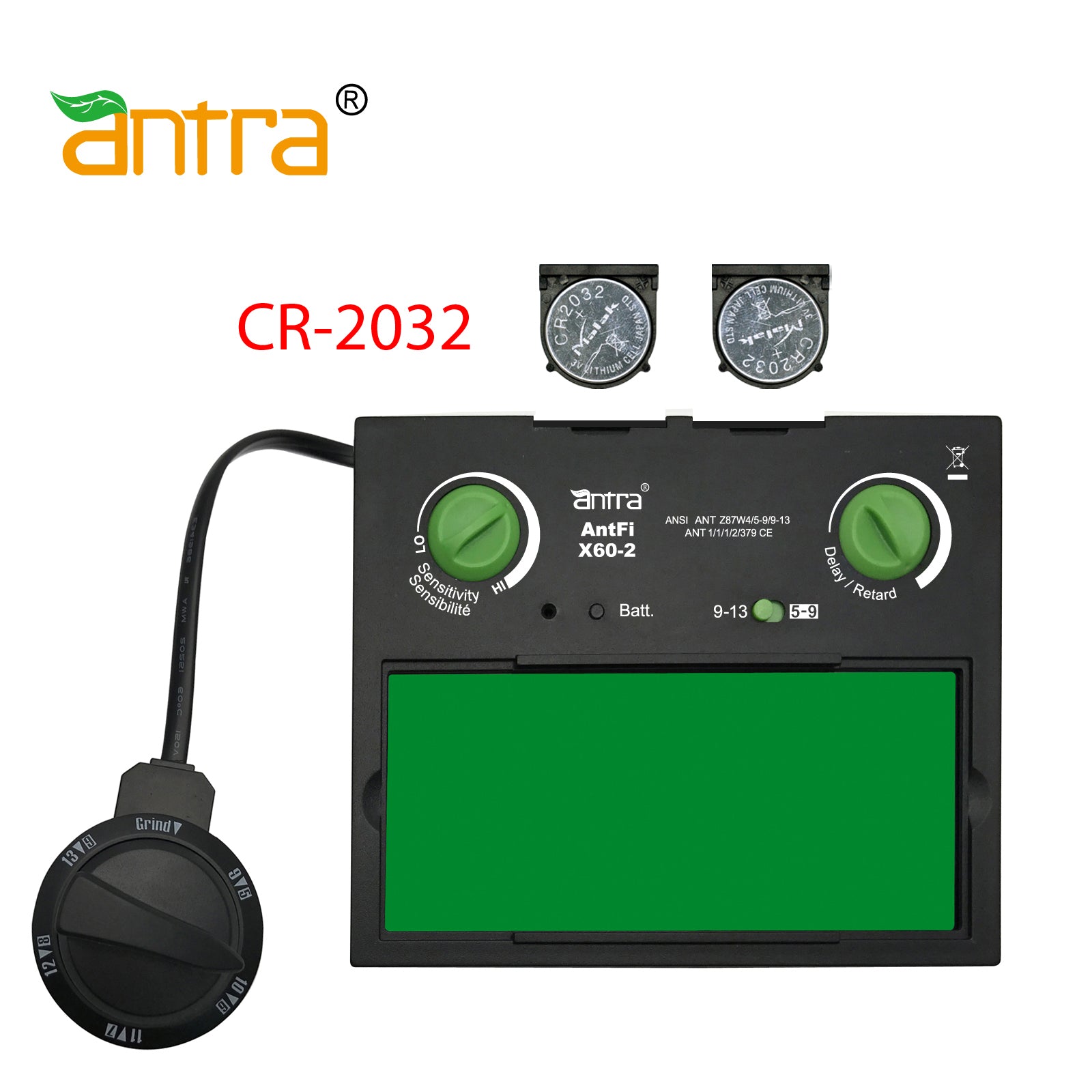

Battery Type: Solar Cell + 2X CR2032 (Replaceable)
