Antra

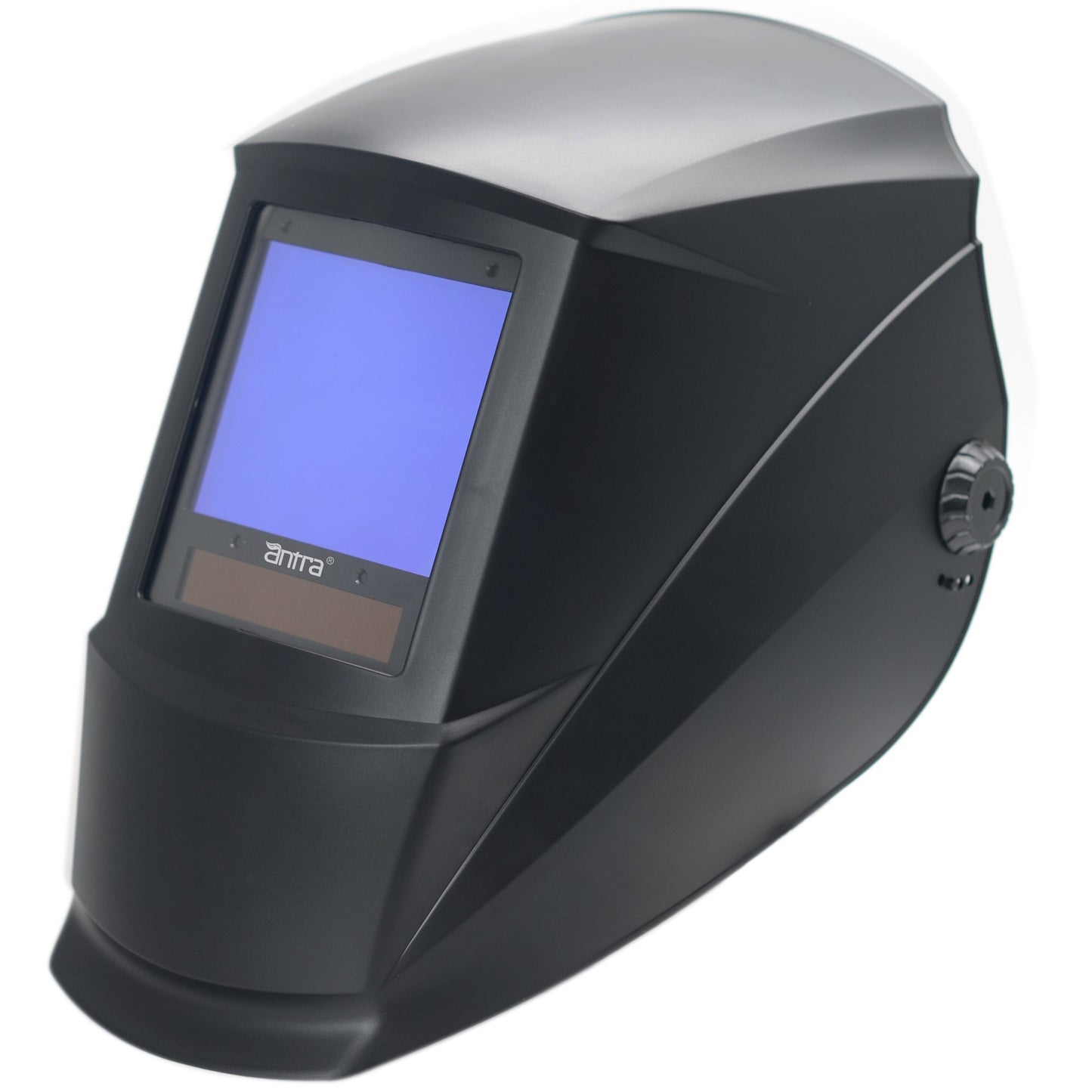

Antra™ AH7-X90-0000 Solar Power Auto Darkening Welding Helmet Shade 4/5-9/9-13

Antra™ AH7-X90-0000 Solar Power Auto Darkening Welding Helmet Shade 4/5-9/9-13

Regular price $119.99 USD
Regular price $189.99 USD Sale price $119.99 USD
Sale Sold out

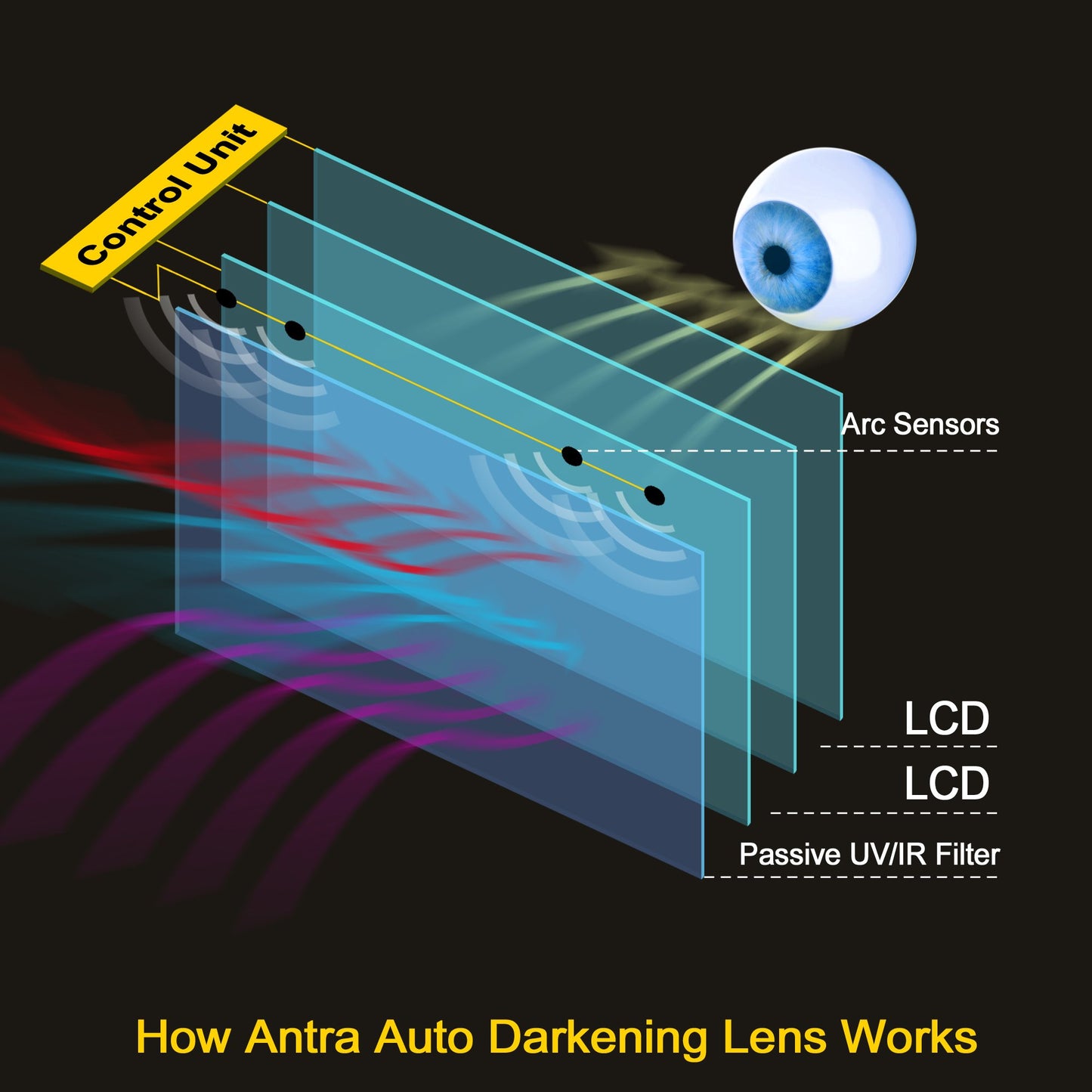

Antra™ AH7-X90 Series welding helmet is featured with the CPU controlled 4 sensor auto darkening lens with TOP Optical Class 1/1/1/1, which is extremely fast responsive to electric arc from TIG, MIG, MMA or Plasma applications. The luxury big viewing area 3.86 in. x 3.23 in. provides a much better vision of the whole welding process, which ensures a better finish of welding or cutting. Diamond Series welding helmet offers very precise shade control, which eliminates guess work completely. Applications it covers includes grinding, cutting and welding.

Features:

  • UV/IR Permanent Protection by Passive Filter, UV Shade>=DIN13
  • Solar power cell design with replaceable batteries
  • Can be used for TIG, MIG/MAG, MMA(Stick), Plasma Cutting and Grinding.
  • Manual ON, Manual/Auto OFF.
  • Digital controlled sensitivity and delay setting with LCD display

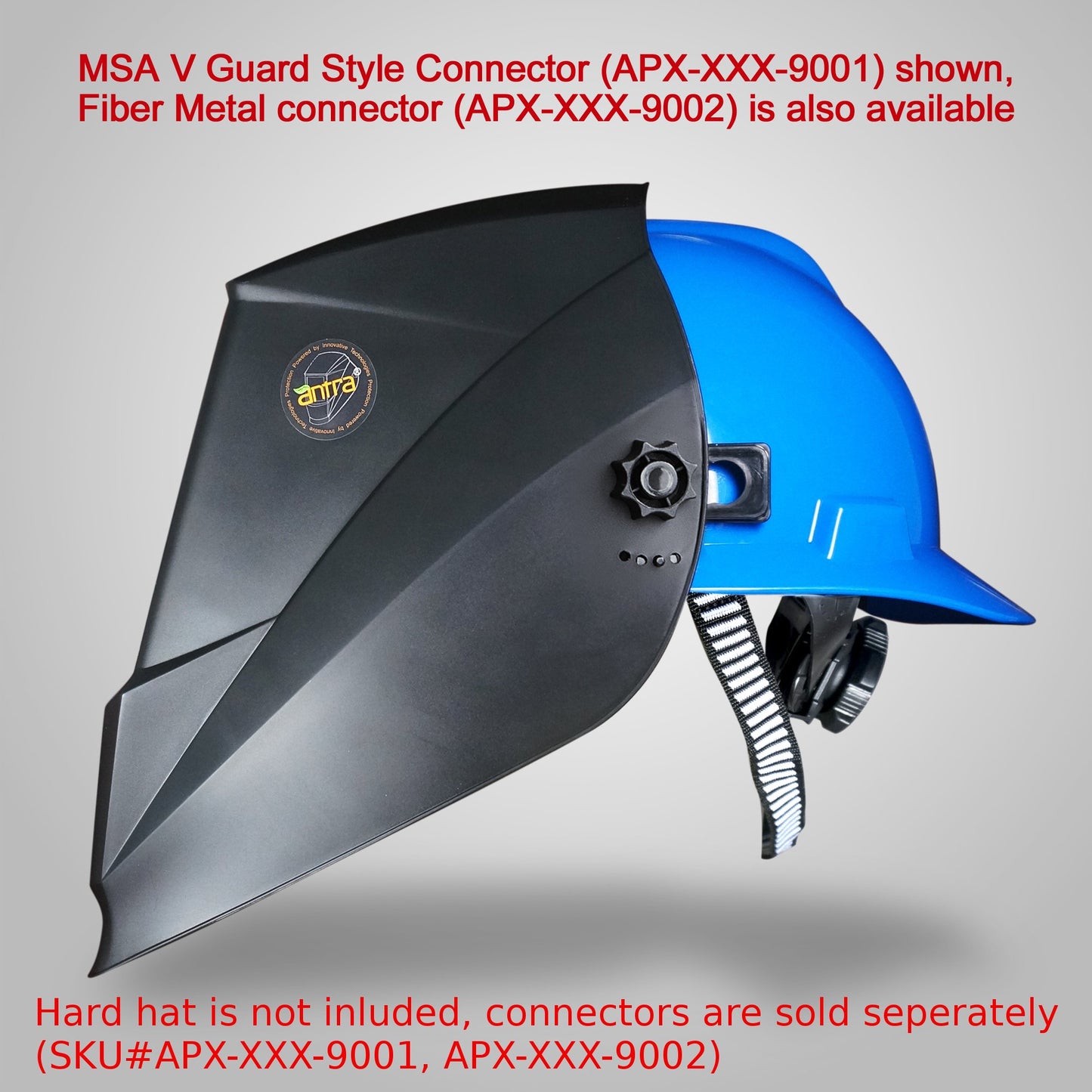

  • Hard hat adapter (Sold separately)
  • Low Battery indicator
  • Power off delay 10 minutes, the filter keeps alive for 10 minutes in dark environment before it goes to sleep.
  • Super lightweight design, only 528g/19oz.


Specifications

  • Viewing Area: 98 x 62mm /3.86" x 3.23"
  • Cartridge Size: 133mm x 114mm x 9mm/5.24" x 4.5" x 0.35"
  • Optical Class: 1/1/1/1
  • Reaction Time: 0.00004(1/25,000) Seconds
  • Dark to Light: Digital(1-9)0.1-0.9 Seconds
  • Light State: Shade DIN 4
  • Dark State: Shade DIN 5-9/9-13
  • DC TIG Amperage Rating: >2 Amps
  • Battery Type: Solar Cell + 2X CR2032 (Replaceable)
  • Helmet Material: High Impact Polyamide Nylon
  • Operating Temperature: -10°C55°C (14°F-131°F)
  • Storage Temperature: -10°C55°C (14°F-131°F)
  • Meet Standards: ANSI Z87.1 / EN379 CE / CSA Z94.3
    *Note: Head gear may require simple assembly.
